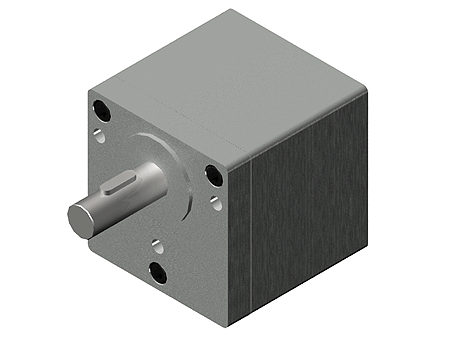

End of Life - high precision gearbox M 67

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	high precision gearbox M 67
Part number	M67-5

CAD models

Product selection

Index	Selector	order number	max. radial force (N)	max. axial force (N)	max. input speed (rpm)	temperature range (°C)
1	1	M67	300	40	4500	-20° - +40°

Index	Selector	i	steps	M (N.m)	ni (%)
1	1	5	2	0.35	0.82
2	2	10	2	0.35	0.82
3	3	12.5	2	0.35	0.82
4	4	20	3	1.4	0.74
5	5	25	3	1.4	0.74
6	6	30	3	1.4	0.74
7	7	40	4	2.8	0.66
8	8	50	4	2.8	0.66
9	9	60	4	2.8	0.66
10	10	75	4	2.8	0.66
11	11	80	5	4	0.6
12	12	100	5	4	0.6
13	13	125	5	4	0.6
14	14	150	5	4	0.6
15	15	188	5	4	0.6
16	16	234	5	4	0.6
17	17	160	6	4	0.54
18	18	200	6	4	0.54
19	19	250	6	4	0.54
20	20	300	6	4	0.54
21	21	375	6	4	0.54
22	22	391	6	4	0.54
23	23	469	6	4	0.54
24	24	586	6	4	0.54
25	25	750	7	4	0.48
26	26	937	7	4	0.48
27	27	1172	7	4	0.48
28	28	1200	8	4	0.44
29	29	1500	8	4	0.44
30	30	1875	8	4	0.44
31	31	2344	8	4	0.44
32	32	2441	8	4	0.44
33	33	2930	8	4	0.44
