End of Life - FSW single flange Nut

Manufacturer	Technische Antriebselemente GmbH - Germany

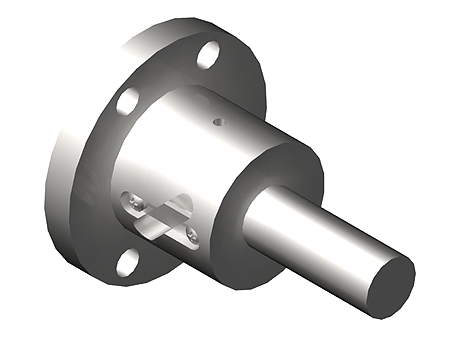

Description	FSW single flange Nut
Part number	KM1204-FSW-D-P0
Note	KS1204-60-P0

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	Thread dimensions	d (mm)	l (mm)	Da (mm)	D (mm)	A (mm)	B (mm)	L (mm)	W (mm)	X (mm)	Y (mm)	Z (mm)	H (mm)	T (mm)	Type	n	Ca (Kgf)	Coa (Kgf)

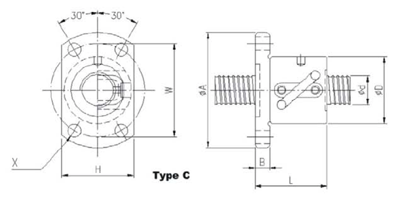

1	1	KM1204-FSW	1204	12	4	2.381	28	48	6	30	39	5.5			30		C	3.5X1	425	738
2	2	KM1205-FSW	1205	12	5	2	28	48	6	35	39	5.5			30		C	2.5X1	662	1036

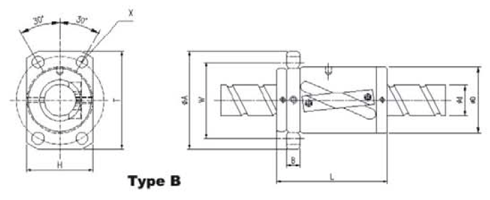

3	3	KM1520-FSW	1520	15	20	3.175	34	55	7	57	45	6			34	50	B	1.5X1	4560	7730

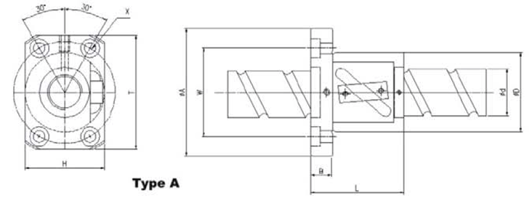

4	4	KM2010-FSW	2010	20	10	3.969	46	74	13	54	59	6.6	11	6.3	46	66	A	2.5X1	1146	1958

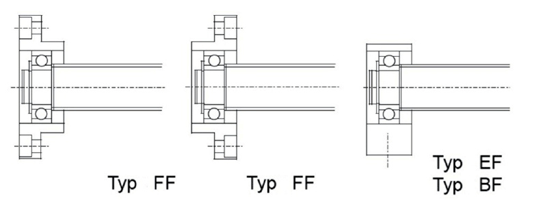

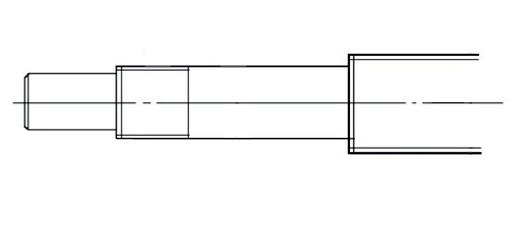

Left Spindle End

Right Spindle End

Index	Selector	Left Bearing Unit	Spindle d (mm)	A (mm)	E (mm)	B (mm)	F (mm)	G (mm)	M	S (mm)
1	3	keine

Index	Selector	Right Bearing Unit	Spindle d (mm)	A (mm)	E (mm)	B (mm)	F (mm)	G (mm)	M	S (mm)
1	3	keine

Spindel Length (mm)
