End of Life - FSI single flange Nut

Manufacturer	Technische Antriebselemente GmbH - Germany

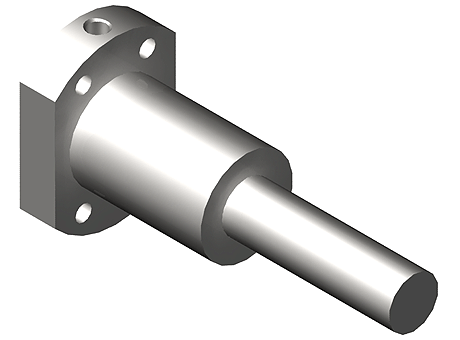

Description	FSI single flange Nut
Part number	KM1404-4-FSI-N-P0
Note	KS1404-4-94-P0

CAD models

Request for quotation

Product selection

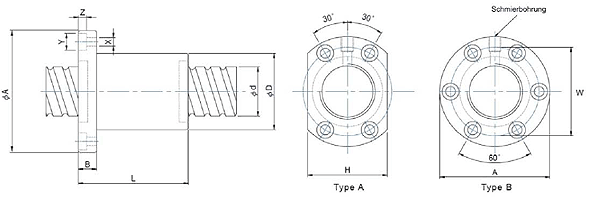

Index	Selector	Order no.	Thread dimensions	d (mm)	l (mm)	Da (mm)	D (mm)	A (mm)	B (mm)	L (mm)	W (mm)	X (mm)	Y (mm)	Z (mm)	Type	H (mm)	Q	n	Ca (Kgf)	Coa (Kgf)	K (Kgf/mm)
1	1	KM1404-4-FSI	1404-4	14	4	2.381	26	46	10	47	36	4.5	8	4.5	A	34	M6	4	400	890	18
2	2	KM1604-4-FSI	1604-4	16	4	2.381	30	49	10	45	39	4.5	8	4.5	A	34	M6	4	625	1253	21.8
3	3	KM1605-3-FSI	1605-3	16	5	3.175	30	49	10	42	39	4.5	8	4.5	A	34	M6	3	760	1240	17
4	4	KM1605-4-FSI	1605-4	16	5	3.175	30	49	10	50	39	4.5	8	4.5	A	34	M6	4	780	1790	17
5	5	KM1610-4-FSI	1610-4	16	10	3.175	34	58	10	54.6	45	5.5	9.5	5.5	A	36	M6	4	918	1643	15
6	6	KM2005-4-FSI	2005-4	20	5	3.175	34	57	12	53	45	5.5	9.5	5.5	A	40	M6	4	1100	2280	21
7	7	KM2504-4-FSI	2504-4	25	4	2.381	40	63	11	46	51	5.5	9.5	5.5	A	46	M6	4	775	2045	33.4
8	8	KM2505-4-FSI	2505-4	25	5	3.175	40	63	12	53	51	5.5	9.5	5.5	A	46	M8	4	1250	3070	26
9	9	KM2510-4-FSI	2510-4	25	10	4.762	46	72	12	85	58	6.5	11	6.5	A	52	M6	4	1944	3877	27
10	10	KM3205-4-FSI	3205-4	32	5	3.175	46	72	12	53	58	6.5	11	6.5	A	52	M8	4	1400	4080	32
11	11	KM3206-4-FSI	3206-4	32	6	3.969	62	89	12	63	75	6.5	11	6.5	B		M8	4	1706	4217	43
12	12	KM3210-4-FSI	3210-4	32	10	6.35	54	88	16	90	70	9	14	8.5	A	62	M8	4	3390	7170	34
13	13	KM4005-4-FSI	4005-4	40	5	3.175	56	90	16	56	72	9	14	8.5	A	64	M8	4	1575	5290	38
14	14	KM4010-4-FSI	4010-4	40	10	6.35	62	104	18	93	82	11	17.5	11	A	70	M8	4	3850	9470	41
15	15	KM5010-4-FSI	5010-4	50	10	6.35	72	114	18	93	92	11	17.5	11	A	82	M8	4	4390	12400	50
16	16	KM6310-4-FSI	6310-4	63	10	6.35	90	125	18	98	108	14	20	13	B		M8	4	5070	16600	80
17	17	KM6320-3-FSI	6320-3	63	20	9.525	95	135	20	138	115	18	26	17.5	B		M8	3	8490	23610	74
18	18	KM8010-4-FSI	8010-4	80	10	6.35	105	145	20	98	125	14	20	13	B		M8	4	5620	21300	90
19	19	KM8020-3-FSI	8020-3	80	20	9.525	125	165	25	143	145	18	26	17.5	B		M8	3	6302	19008	86

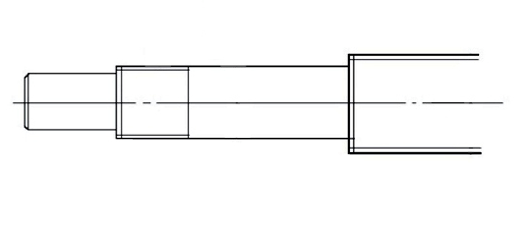

Flattening

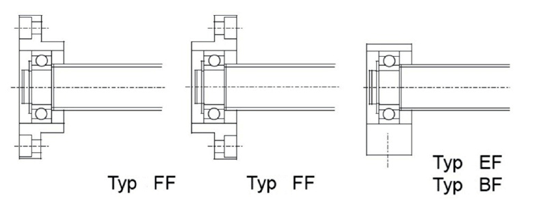

Left Spindle End

Right Spindle End

Index	Selector	Left Bearing Unit	Spindle d (mm)	A (mm)	E (mm)	B (mm)	F (mm)	G (mm)	M	S (mm)
1	4	keine

Index	Selector	Right Bearing Unit	Spindle d (mm)	A (mm)	E (mm)	B (mm)	F (mm)	G (mm)	M	S (mm)
1	4	keine

Spindel Length (mm)

Contact the supplier
