End of Life - FSC single flange Nut

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	FSC single flange Nut
Part number	KM1210-2-FSC-N-P0
Note	KS1210-2-80-P0

CAD models

Request for quotation

Product selection

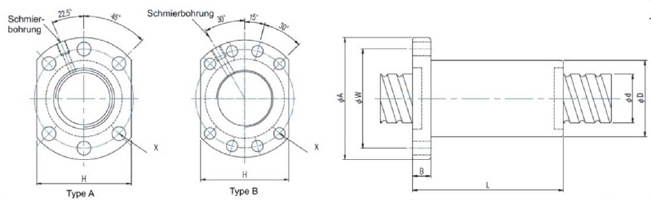

Index	Selector	Order no.	Thread dimensions	d (mm)	l (mm)	Da (mm)	D (mm)	A (mm)	B (mm)	L (mm)	W (mm)	X (mm)	Type	H (mm)	Q	n	Ca (Kgf)	Coa (Kgf)

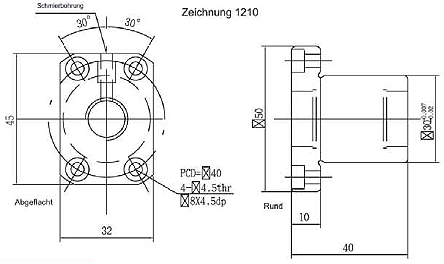

1	1	KM1210-2-FSC	1210-2	12	10	2	30		10	40	40	8		32	M6	2	255	367
2	2	KM1605-4-FSC	1605-4	16	5	3.175	28	48	12	34	38	5.5	A	40	M6	4	1255	1642
3	3	KM1610-3-FSC	1610-3	16	10	3.175	28	48	12	43.3	38	5.5	A	40	M6	3	716	1232
4	4	KM1616-3-FSC	1616-3	16	16	3.175	28	48	12	61	38	5.5	A	40	M6	3	716	1232
5	5	KM2005-4-FSC	2005-4	20	5	3.175	36	58	10	53	47	6.6	A	44	M6	4	1459	2193
6	6	KM2505-4-FSC	2505-4	25	5	3.175	40	62	10	53	51	6.6	A	48	M6	4	1622	2774
7	7	KM2510-4-FSC	2510-4	25	10	3.5	40	62	12	64	51	6.6	A	48	M6	4	1845	3020
8	8	KM3205-4-FSC	3205-4	32	5	3.175	50	80	12	53	65	9	A	62	M6	4	2203	4080
9	9	KM3220-6-FSC	3220-6	32	20	3.969	50	80	13	78	65	9	A	62	M6	3	2009	3437
10	10	KM4005-4-FSC	4005-4	40	5	3.175	63	93	16	56	78	9	B	70	M8	4	2968	6538
11	11	KM4020-3-FSC	4020-3	40	20	5.556	63	93	15	83	78	9	B	70	M8	3	3866	6406
12	12	KM5010-4-FSC	5010-4	50	10	6.35	75	110	18	90	93	11	B	85	M8	4	8129	16983
13	13	KM5020-5-FSC	5020-5	50	20	6.35	75	110	18	121	93	11	B	85	M8	5	77121	15269

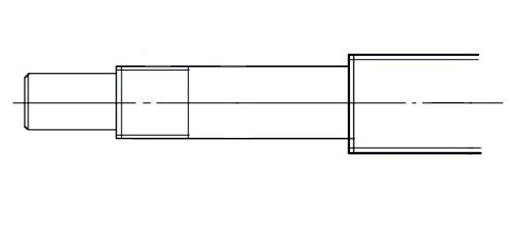

Flattening

without Flattening

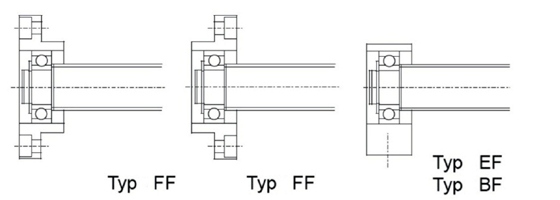

Left Spindle End

Right Spindle End

Index	Selector	Left Bearing Unit	Spindle d (mm)	A (mm)	E (mm)	B (mm)	F (mm)	G (mm)	M	S (mm)
1	3	keine

Index	Selector	Right Bearing Unit	Spindle d (mm)	A (mm)	E (mm)	B (mm)	F (mm)	G (mm)	M	S (mm)
1	3	keine

Spindel Length (mm)

Contact the supplier
