End of Life - bevel gearbox type MBH

Manufacturer	Technische Antriebselemente GmbH - Germany

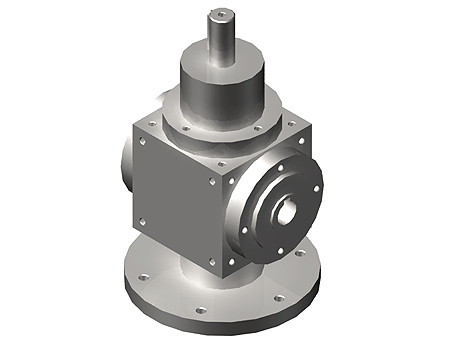

Description	bevel gearbox type MBH
Part number	BG19 MBH 1:1 10 G 63

CAD models

Product selection

Index	Selector	order number	reduction	motor size B5	D1 (mm)	D7 (mm)	D8 (mm)	D9 (mm)	D10 (mm)	L1 (mm)	L7 (mm)	L9 (mm)	M (mm)
1	1	BG19	1, 2, 3	63	11	95	115	140	M8	23	4	12	90
2	2	BG19	4, 5	71	14	110	130	160	M8	30	4	12	90
3	3	BG24	1, 2, 3	71	14	110	130	160	M8	30	4	12	120
4	4	BG24	1, 2, 3	80	19	130	165	200	M10	40	5	12	120
5	5	BG24	1, 2, 3	90	24	130	165	200	M10	50	5	12	120
6	6	BG24	4, 5	71	14	110	130	160	M8	30	4	12	120
7	7	BG24	4, 5	80	19	130	165	200	M10	40	5	12	120
8	8	BG32	1, 2, 3	80	19	130	165	200	M10	40	5	15	140
9	9	BG32	1, 2, 3	90	24	130	165	200	M10	50	5	15	140
10	10	BG32	1, 2, 3	112	28	180	215	250	M12	60	5	15	140
11	11	BG32	4, 5	80	19	130	165	200	M10	40	5	15	140
12	12	BG32	4, 5	90	24	130	165	200	M10	50	5	15	140
13	13	BG38	1, 2, 3	90	24	130	165	200	M10	50	5	15	155
14	14	BG38	1, 2, 3	112	28	180	215	250	M12	60	5	15	155
15	15	BG38	1, 2, 3	132	38	230	265	300	M12	80	5	15	155
16	16	BG38	4, 5	90	24	130	165	200	M10	50	5	15	155
17	17	BG38	4, 5	112	28	180	215	250	M12	60	5	15	155
18	18	BG42	1, 2	112	28	180	215	250	M12	60	5	20	200
19	19	BG42	1, 2	132	38	230	265	300	M12	80	5	20	200
20	20	BG42	1, 2	160	42	250	300	350	M16	110	6	20	200
21	21	BG42	3	112	28	180	215	250	M12	60	5	20	200
22	22	BG42	3	132	38	230	265	300	M12	80	5	20	200
23	23	BG42	4, 5	112	28	180	215	250	M12	60	5	20	200
24	24	BG55	1, 2, 3	112	28	180	215	250	M12	60	5	20	220
25	25	BG55	1, 2, 3	132	38	230	265	300	M12	80	5	20	220
26	26	BG55	1, 2, 3	160	42	250	300	350	M16	110	6	20	220
27	27	BG55	4, 5	112	28	180	215	250	M12	60	5	20	220
28	28	BG55	4, 5	132	38	230	265	300	M12	80	5	20	220

reduction

mounting position

lubration

grease
