End of Life - bevel gearbox type BH

Manufacturer	Technische Antriebselemente GmbH - Germany

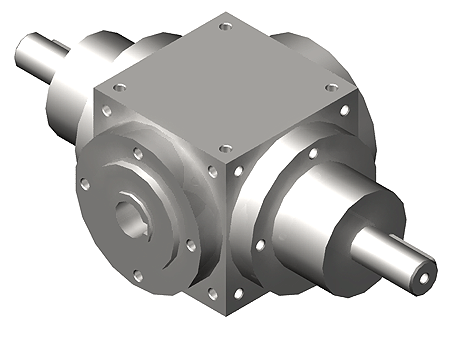

Description	bevel gearbox type BH
Part number	BG19 BH 1:1 10 G

CAD models

Request for quotation

Product selection

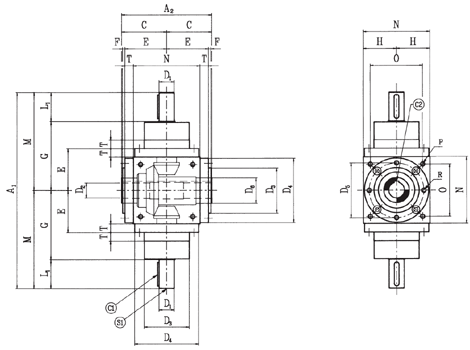

Index	Selector	order number	reduction	A1 (mm)	A2 (mm)	C (mm)	D1 (mm)	D2 (mm)	D3 (mm)	D4 (mm)	D5 (mm)	D6 (mm)	E (mm)	F (mm)	G (mm)	H (mm)	L1 (mm)	M (mm)	N (mm)	O (mm)	P	R	S1	C1	C2	T
1	1	BG19	1, 2, 3	280	130	65	19	19	60	86	72	30	59	4	100	45	40	140	90	70	M6	M6	M6x12	35x6x6	6x6	14
2	2	BG19	4, 5	260	130	65	14	19	60	86	72	30	59	4	100	45	30	130	90	70	M6	M6	M5x10	25x5x5	6x6	14
3	3	BG24	1, 2, 3	330	160	80	24	24	70	105	88	35	73	5	115	55	50	165	110	88	M8	M8	M8x16	40x8x7	8x7	18
4	4	BG24	4, 5	310	160	80	19	24	70	105	88	35	73	5	115	55	40	155	110	88	M8	M8	M6x12	35x6x6	8x7	18
5	5	BG32	1, 2, 3	410	190	95	32	32	95	135	115	50	88	5	145	70	60	205	140	110	M10	M10	M10x20	50x10x8	10x8	18
6	6	BG32	4, 5	390	190	95	24	32	95	135	115	50	88	5	145	70	50	195	140	110	M10	M10	M8x16	40x8x7	10x8	18
7	7	BG38	1, 2, 3	480	220	110	38	38	120	165	145	60	103	5	170	85	70	240	170	136	M12	M12	M12x24	60x10x8	10x8	18
8	8	BG38	4, 5	460	220	110	28	38	120	165	145	60	103	5	170	85	60	230	170	136	M12	M12	M10x20	50x8x7	10x8	18
9	9	BG42	1, 2, 3	550	250	125	42	42	135	190	165	60	118	5	195	100	80	275	200	155	M12	M12	M12x24	70x12x8	12x8	18
10	10	BG42	4, 5	510	250	125	32	42	135	190	165	60	118	5	195	100	60	255	200	155	M12	M12	M10x20	50x10x8	12x8	18
11	11	BG55	1, 2, 3	710	300	150	55	55	170	230	205	75	143	5	245	120	110	355	240	190	M14	M14	M14x28	100x16x10	16x10	23
12	12	BG55	4, 5	650	300	150	42	55	170	230	205	75	143	5	245	120	80	325	240	190	M14	M14	M12x24	70x12x8	16x10	23
13	13	BG75	1, 2, 3	1000	450	225	75	75	-	300	-	120	195	-	350	165	150	500	330	248	M16	M16	M16x32	140x22x14	22x14	30
14	14	BG75	4, 5	920	450	225	55	75	-	300	-	120	195	-	350	165	110	460	330	248	M16	M16	M14x28	100x16x10	22x14	30

reduction

mounting position

lubrication

grease

Contact the supplier

T.E.A.

The experts in drive and linear motion systems

Technische Antriebselemente GmbH (TEA)

Technische Antriebselemente GmbH (TEA)
Lademannbogen 45
22339 Hamburg
Germany
www.tea-hamburg.de
