End of Life - bevel gearbox type 33

Manufacturer	Technische Antriebselemente GmbH - Germany

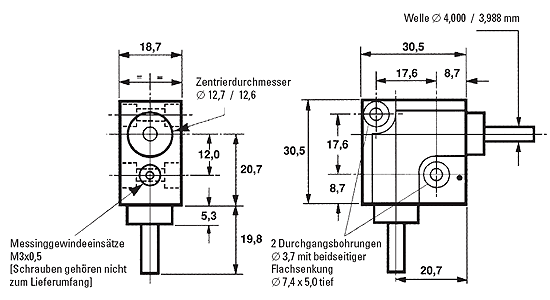

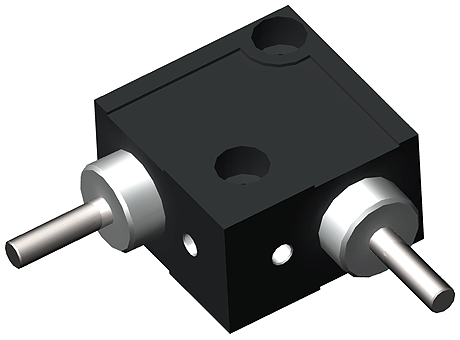

Description	bevel gearbox type 33
Part number	332

CAD models

Product selection

Index	Selector	order number	reduction	electrical isolation between	max. backlash	Md max. (N.m)	material housing	material shafts	material bearing	material bevel gear
1	1	332	1:1	shaft and housing	2°	0.68	nylon 6.6 shed	steel, hardened and polished	sintered bronze, lifetime lubricated	steel
2	2	333	1:1	input- and output shaft and housing	2°	0.11	nylon 6.6 shed	steel, hardened and polished	sintered bronze, lifetime lubricated	azetat
