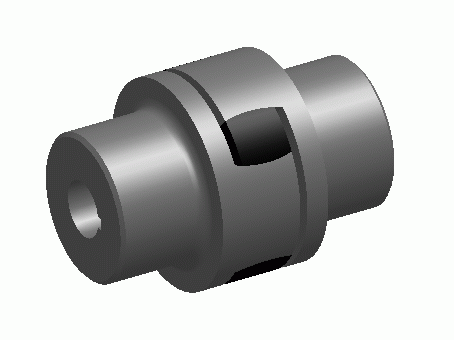

Elastic spider coupling, grey cast iron

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Elastic spider coupling, grey cast iron
Reference	G19/24 B/B 6 6

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	Hub A d pre bored (mm)	Hub A dH7 min (mm)	Hub A dH7 max (mm)	Hub B d pre bored (mm)	Hub B dH7 min (mm)	Hub B dH7 max (mm)	A (mm)	C (mm)	C1 (mm)	L (mm)	L1 + L2 (mm)	E (mm)	s (mm)	b (mm)	G (mm)	F (mm)	g	h (mm)	L2 max (mm)	Weight (A/B) (kg)
1	1	G19/24					6	24	40		40	66	25	16	2	12		18	M5	10	40	0.34
2	2	G24/30					8	32	55		55	78	30	18	2	14		27	M5	10	50	0.9
3	3	G28/38					10	38	65		65	90	35	20	2.5	15		30	M6	15	80	1.5
4	4	G38/45		14	38		40	45	80	66	78	114	45	24	3	18	37	38	M8	15	70	2.35
5	5	G42/55		16	42		45	55	95	75	93	126	50	26	3	20	40	46	M8	20	75	3.55
6	6	G48/60		19	48		50	60	105	85	103	140	56	28	3.5	21	45	51	M8	20	80	4.85
7	7	G55/70		22	55	53	60	70	120	98	118	160	65	30	4	22	52	60	M10	20	90	7.4
8	8	G65/75		25	65	63	70	75	135	115	133	185	75	35	4.5	26	61	68	M10	20	100	10.8
9	9	G75/90		30	75	73	80	90	160	135	158	210	85	40	5	30	69	80	M10	25	110	17.7
10	10	G90/100					45	100	200		170	245	100	45	5.5	34	81	100	M10	25		29.6

option

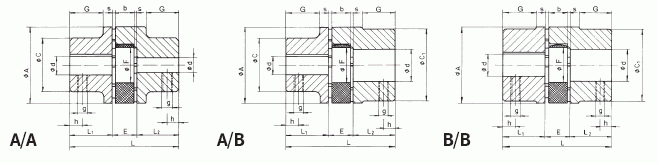

B/B

Bore d in hub A (mm)

d2 (mm)

Hub extension L2 (mm)

Contact the supplier
