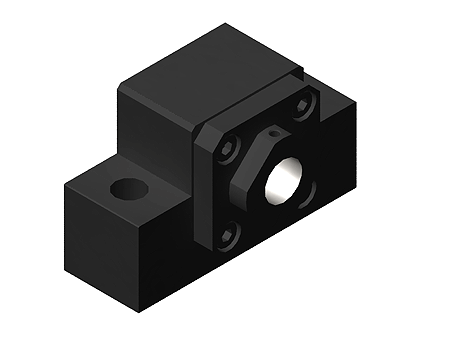

EK Fixed Bearing

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	EK Fixed Bearing
Reference	EK 05

CAD models

Request for quotation

Product selection

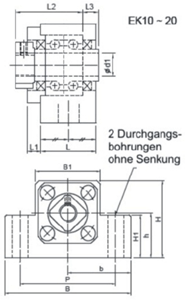

Index	Selector	Order no.	d1 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	B (mm)	H (mm)	b±0.02 (mm)	h±0.02 (mm)	B1 (mm)	H1 (mm)	P (mm)	X (mm)	Y (mm)	Z (mm)	M	T (mm)
1	1	EK 05	5	16.5	5.5	18.5	3.5	36	21	18	11	20	8	28	4.5			M2,6	11
2	2	EK 06	6	20	5.5	22	3.5	42	25	21	13	18	20	30	5.5	9.5	11	M3	12
3	3	EK 08	8	23	7	26	4	52	32	26	17	25	26	38	6.6	11	12	M3	14
4	4	EK 10	10	24	6	29.5	6	70	43	35	25	36	24	52	9			M3	16
5	5	EK 12	12	24	6	29.5	6	70	43	35	25	36	24	52	9			M3	19
6	6	EK 15	15	25	6	36	5	80	49	40	30	41	25	60	11			M3	22
7	7	EK 20	20	42	10	50	10	95	58	47.5	30	56	25	75	11			M4	30
