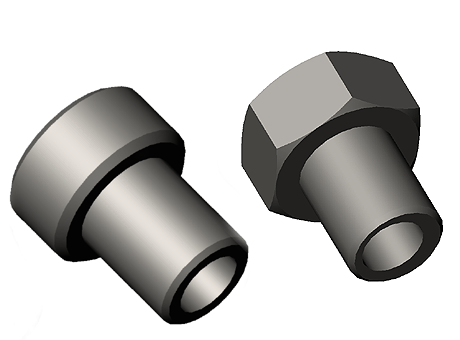

DUALVee ® Concentric and Eccentric Adapter Bushing

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	DUALVee ® Concentric and Eccentric Adapter Bushing
Reference	B1SS

CAD models

Request for quotation

Product selection

Index	Selector	Order No.	Form	Material	L (mm)	D (mm)	d (mm)	B (mm)	Screw Dimension	e (mm)	A (mm)	Weight (g)
1	1	B1SS	zentrisch	1.4305	13.97	4.75	11.11	3.6	3,5x	0	6.35	5
2	2	B2SS	zentrisch	1.4305	17.93	9.51	14.28	6.1	6	0	7.13	11
3	3	B3SS	zentrisch	1.4305	25.14	11.99	19.05	8.1	8	0	9.52	26
4	4	B4SS	zentrisch	1.4305	29.9	14.99	22.22	10.1	10	0	11.09	45
5	5	B1XSS	exzentrisch	1.4305	13.97	4.75	11.11	3.6	3,5x	0.3	6.35	5
6	6	B2XSS	exzentrisch	1.4305	17.93	9.51	14.28	6.1	6	0.6	7.13	11
7	7	B3XSS	exzentrisch	1.4305	25.14	11.99	19.05	8.1	8	1.06	9.52	26
8	8	B4XSS	exzentrisch	1.4305	29.9	14.99	22.22	10.1	10	1.52	11.09	45
