Coupling (anti-backlash), without bore, no key way, with 2 set screws

Manufacturer	Technische Antriebselemente GmbH - Germany

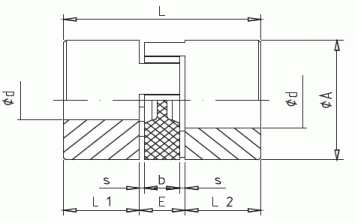

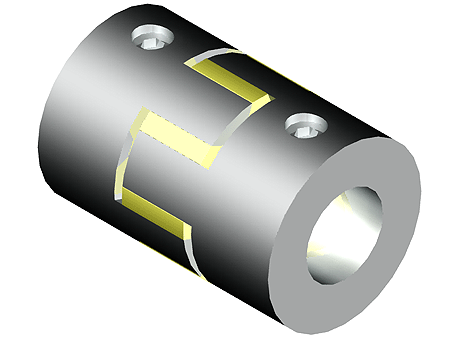

Description	Coupling without backlash, without bore, no key way, with 2 set screws
Reference	B9 - 9KS92

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	no bore	d min (mm)	d max (mm)	A (mm)	L (mm)	L1/L2 (mm)	E (mm)	b (mm)	s (mm)	g1	f (mm)
1	1	B9	x	4	11	20	30	10	10	8	1	M4 [2x]	5
2	2	B14	x	4	16	30	35	11	13	10	1.5	M6 [2x]	5
3	3	B19/24	x	6	24	40	66	25	16	12	2	M6 [2x]	10
4	4	B24/30	x	10	30	55	78	30	18	14	2	M6 [2x]	10
5	5	B28/38	x	10	38	65	90	35	20	15	2.5	M8 [2x]	15
6	6	B38/45	x	15	45	80	114	45	24	18	3	M8 [2x]	15

Bore diameter left hub (0 for no bore) (mm)

Bore diameter right hub (0 for no bore) (mm)

Index	Selector	Order no.	Spider shore	Spider color	Tkn nominal torque (N.m)	Tkmax (N.m)	Max. speed V=30m/s (rpm)
1	1	9KS92	92°A	yellow	3	6	28000
2	2	9KS64	64°D	green	6	12	28000
3	3	9KS98	98°A	red	5	10	28000
