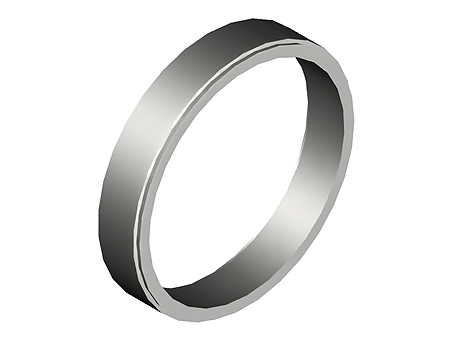

CLAMPEX® shaft to hub connector, non self centering, type 150

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	CLAMPEX®-shaft-hub-connection, non self centering, type 150
Reference	150-6X9

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	d x D (mm)	B (mm)	B1 (mm)	A1 (mm)	A2 (mm)	A3 (mm)	A4 (mm)	d1 (mm)	D1 (mm)	PO (N)	PA (N)	PO+PA (N)	T (N.m)	Fax (kN)	PW (N/mm2)	PN (N/mm2)	Weight (kg)
1	1	150-6X9	6x9	4.5	3.7	2.5	2.5	3	4	6.1	8.9	*	3000	3000	2	0.67	80	53	0.0012
2	2	150-7X10	7x10	4.5	3.7	2.5	2.5	3	4	7.1	8.9	*	5300	5300	4	1.19	121	85	0.0014
3	3	150-8X11	8x11	4.5	3.7	4.5	2.5	3	4	8.1	10.9	*	5600	5600	5	1.25	112	82	0.0015
4	4	150-9X12	9x12	4.5	3.7	2.5	2.5	3	4	9.1	11.9	7947	6653	14600	7	1.5	119	89	0.0017
5	5	150-10X13	10x13	4.5	3.7	2.5	2.5	3	4	10.1	12.9	7063	8937	16000	10	2	143	110	0.0018
6	6	150-12X15	12x15	4.5	3.7	2.5	2.5	3	4	12.1	14.9	7808	8192	16000	11	1.8	110	88	0.0021
7	7	150-13X16	13x16	4.5	3.7	2.5	2.5	3	4	13.1	15.9	7007	9693	16700	14	2.2	120	97	0.0023
8	8	150-14X18	14x18	6.3	5.3	3.5	3.5	4.5	5.5	14.1	17.9	11957	14043	26000	22	3.1	112	87	0.0049
9	9	150-15X19	15x19	6.3	5.3	3.5	3.5	4.5	5.5	15.1	18.9	12106	14894	27000	25	3.3	111	88	0.0053
10	10	150-16X20	16x20	6.3	5.3	3.5	3.5	4.5	5.5	16.1	19.9	12478	14522	27000	26	3.2	102	81	0.0055
11	11	150-17X21	17x21	6.3	5.3	3.5	3.5	4.5	5.5	17.1	20.9	11678	16822	28500	32	4.1	120	90	0.0058
12	12	150-18X22	18x22	6.3	5.3	3.5	3.5	4.5	5.5	18.1	21.9	14630	18370	33000	37	3.7	102	94	0.0061
13	13	150-19X24	19x24	6.3	5.3	3.5	3.5	4.5	5.5	19.2	23.8	14186	18814	33000	40	4.2	111	88	0.0078
14	14	150-20X25	20x25	6.3	5.3	3.5	3.5	4.5	5.5	20.2	24.8	13339	19661	33000	44	4.4	110	88	0.0082
15	15	150-22X26	22x26	6.3	5.3	3.5	3.5	4.5	5.5	22.2	25.8	13689	20311	34000	50	4.5	103	87	0.0072
16	16	150-24X28	24x28	6.3	5.3	3.5	3.5	4.5	5.5	24.2	27.8	8676	25324	34000	68	5.7	118	101	0.008
17	17	150-25X30	25x30	6.3	5.3	3.5	3.5	4.5	5.5	25.2	29.8	10190	26810	37000	75	6	120	100	0.01
18	18	150-28X32	28x32	6.3	5.3	3.5	3.5	4.5	5.5	28.2	31.8	11275	28725	40000	90	6.4	115	101	0.009
19	19	150-30X35	30x35	6.3	5.3	3.5	3.5	4.5	5.5	30.2	34.8	10211	29789	40000	100	6.7	111	95	0.012
20	20	150-32X36	32x36	6.3	5.3	3.5	3.5	4.5	5.5	32.2	35.8	6487	33513	40000	120	7.5	117	104	0.01
21	21	150-35X40	35x40	7	6	3.5	3.5	4.5	5.5	35.2	39.8	9147	40853	50000	160	9.1	115	101	0.017
22	22	150-36X42	36x42	7	6	3.5	3.5	4.5	5.5	36.2	41.8	12910	43690	56600	176	9.8	120	103	0.02
23	23	150-38X44	38x44	7	6	3.5	3.5	4.5	5.5	38.2	43.8	15317	44683	60000	190	10	116	100	0.021
24	24	150-40X45	40x45	8	6.6	3.5	4.5	5.5	6.5	40.2	44.8	18614	51386	70000	230	11.5	116	103	0.023
25	25	150-42X48	42x48	8	6.6	3.5	4.5	5.5	6.5	42.2	47.8	14678	55322	70000	260	12.4	118	104	0.028
26	26	150-45X52	45x52	10	8.6	3.5	4.5	5.5	6.5	45.2	51.8	32549	77451	110000	390	17.3	119	103	0.042
27	27	150-48X55	48x55	10	8.6	3.5	4.5	5.5	6.5	48.2	54.8	29942	80058	110000	430	17.9	115	100	0.045
28	28	150-50X57	50x57	10	8.6	3.5	4.5	5.5	6.5	50.2	56.8	25995	84005	110000	470	18.8	116	102	0.047
29	29	150-55X62	55x62	10	8.6	3.5	4.5	5.5	6.5	55.2	61.8	25759	94241	120000	580	21.1	118	105	0.05
30	30	150-56X64	56x64	12	10.4	3.5	4.5	5.5	7	56.2	63.8	33227	117773	151000	738	26.4	120	105	0.067
31	31	150-60X68	60x68	12	10.4	3.5	4.5	5.5	7	60.2	67.8	34887	125113	160000	840	28	119	105	0.072
32	32	150-63X71	63x71	12	10.4	3.5	4.5	5.5	7	63.2	70.8	30510	132490	163000	934	29.7	120	107	0.077
33	33	150-65X73	65x73	12	10.4	3.5	4.5	5.5	7	65.2	72.8	22513	137487	160000	1000	30.8	121	108	0.079
34	34	150-70X79	70x79	14	12.2	3.5	5	6.5	7.5	70.3	78.7	34033	165967	200000	1300	37.1	115	102	0.11
35	35	150-71X80	71x80	14	12.2	3.5	5	6.5	7.5	71.3	79.7	36043	174957	211000	1390	39.2	120	106	0.12
36	36	150-75X84	75x84	14	12.2	3.5	5	6.5	7.5	75.3	83.7	41267	178733	220000	1500	40	116	104	0.13
37	37	150-80X91	80x91	17	15	4	6	6.5	8	80.3	90.7	65412	234588	300000	2100	52.5	116	102	0.19
38	38	150-85X96	85x96	17	15	4	6	6.5	8	85.3	95.7	54414	257586	312000	2450	57.6	120	106	0.2
39	39	150-90X101	90x101	17	15	4	6	6.5	8	90.3	100.7	51900	268100	320000	2700	60	118	105	0.22
40	40	150-95X106	95x106	17	15	4	6	6.5	8	95.3	105.7	52145	287855	340000	3060	64.4	120	107	0.23
41	41	150-100X114	100x114	21	18.7	5	6	7	9	100.3	113.7	64660	375340	440000	4200	84	119	105	0.38
42	42	150-110X124	110x124	21	18.7	5	6	7	9	110.3	123.7	100658	349342	450000	4300	78.2	101	89	0.41
43	43	150-120X134	120x134	21	18.7	5	6	7	9	120.4	133.6	80192	379808	460000	5100	85	100	90	0.45
44	44	150-130X148	130x148	28	25.3	5	7	9	11	130.4	147.6	93177	556823	650000	8100	124.6	101	88	0.85
45	45	150-140X158	140x158	28	25.3	6	7	9	11	140.4	157.6	89967	600033	690000	9400	134.3	101	89	0.91
46	46	150-150X168	150x168	28	25.3	6	7	9	11	150.4	167.6	64644	655356	720000	11000	146.7	103	92	0.97
47	47	150-160X178	160x178	28	25.3	6	7	9	11	160.4	177.6	80303	774697	855000	13870	173.4	114	102	1.02
48	48	150-170X191	170x191	33	30	7	9	10	12	170.5	190.5	128166	973834	1102000	18525	217.9	113	101	1.5
49	49	150-180X201	180x201	33	30	7	9	10	12	180.5	200.5	142494	1057506	1200000	21300	236.7	116	104	1.58
50	50	150-190X211	190x211	33	30	7	9	10	12	190.5	210.5	111751	1138249	1250000	24200	254.7	119	107	1.68
51	51	150-200X224	200x224	38	34.8	7	9	11	13	200.6	223.4	182475	1407525	1590000	31500	315	120	107	2.32
52	52	150-210X234	210x234	38	34.8	7	9	11	13	210.6	233.4	100300	1489700	1590000	34761	331.1	121	109	2.45
53	53	150-220X244	220x244	38	34.8	7	9	11	13	220.6	243.4	117900	1552100	1670000	37941	344.9	120	109	2.49
54	54	150-230X257	230x257	43	39.5	7	10	12	14	230.6	256.4	168900	1851100	2020000	47307	411.9	121	108	3.38
55	55	150-240X267	240x267	43	39.5	7	10	12	14	240.6	266.4	160700	1929300	2090000	51449	428.7	121	109	3.52
56	56	150-250X280	250x280	48	44	7	10	12	16	250.6	279.2	191000	2239000	2430000	52245	418	121	108	4.68
57	57	150-260X290	260x290	48	44	7	10	13	16	260.8	289.2	182500	2328500	2511000	56506	434.7	121	108	4.82
58	58	150-270X300	270x300	48	44	7	10	13	16	270.8	299.2	178000	2422000	2600000	61036	452.1	121	109	4.94
59	59	150-280X313	280x313	53	49	7	11	14	17	280.8	312.2	207800	2792200	3000000	72971	521.2	121	108	6.27
60	60	150-290X323	290x323	53	49	7	11	14	17	290.8	322.2	220700	2889300	3110000	77740	536.1	121	108	6.5
61	61	150-300X333	300x333	53	49	7	11	14	17	300.8	332.2	215000	2990000	3205000	83224	554.8	121	109	6.7
62	62	150-320X360	320x360	65	59	10	15	20	25	321	359	292000	3848000	4140000	114246	714	121	108	10.9
63	63	150-340X380	340x380	65	59	10	15	20	25	341	379	275000	4085000	4360000	128863	758	121	108	11.5
64	64	150-360X400	360x400	65	59	10	15	20	25	361	399	260000	4320000	4580000	144292	801.6	121	109	12.2
65	65	150-380X420	380x420	65	59	10	15	20	25	381	419	270000	4570000	4840000	161122	848	121	109	12.8
66	66	150-400X440	400x440	65	59	10	15	20	25	401	439	260000	4800000	5060000	178138	890.7	121	110	13.5
