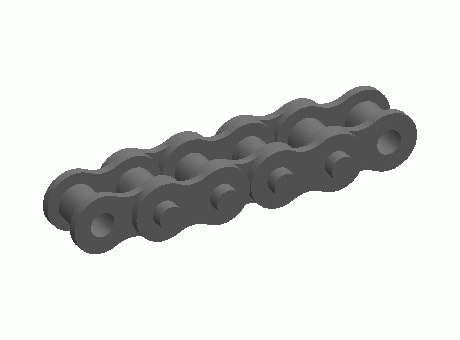

Chains (small), Steel & SS, Pitch 4,5,6 and 8 mm

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Small Chains, Steel and stainless Steel, Pitch 4,5,6 and 8 mm
Reference	4180

CAD models

Request for quotation

Product selection

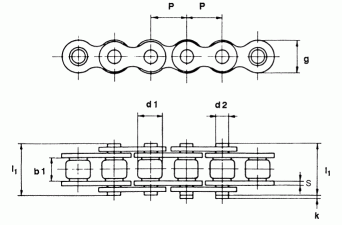

Index	Selector	Order no.	P	B1 Min (mm)	d1 max (mm)	d2 (mm)	g maximal (mm)	s (mm)	l1 (mm)	k (mm)	Rupture Load (N)
1	1	4180	4	2.7	2.5	1.65	4.1	0.57	6.7	1.2	1800
2	2	5200	5	2.5	3.2	1.49	4.1	0.57	7.4	2.5	2200
3	3	6300	6	2.8	4	1.85	5	0.57	7.4	2.9	3000
4	4	6300 SS	6	2.8	4	1.85	5	0.57	7.4	2.9	2000
5	5	8500	8	3	5	2.31	7.1	0.73	8.6	3.1	5000
6	6	8500 SS	8	3	5	2.31	7.1	0.73	8.6	3.1	2950
