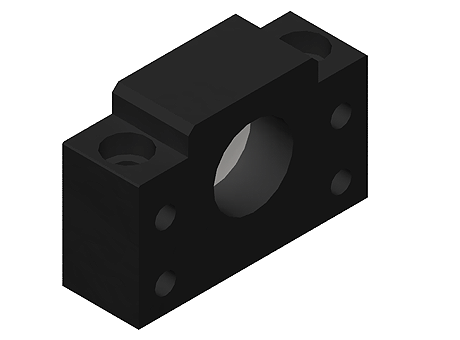

BF Floating Bearing

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	BF Floating Bearing
Reference	BF 10

CAD models

Request for quotation

Product selection

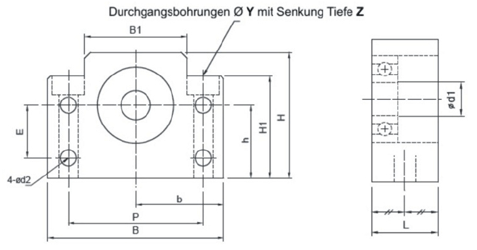

Index	Selector	Order no.	d1 (mm)	L (mm)	B (mm)	H (mm)	b±0.02 (mm)	h±0.02 (mm)	B1 (mm)	H1 (mm)	E (mm)	P (mm)	d2 (mm)	X (mm)	Y (mm)	Z (mm)
1	1	BF 10	8	20	60	39	30	22	34	32.5	15	46	5.5	6.6	10.8	5
2	2	BF 12	10	20	60	43	30	25	35	35	18	46	5.5	6.6	10.8	1.5
3	3	BF 15	15	20	70	48	35	28	40	38	18	54	5.5	6.6	11	6.5
4	4	BF 17	17	23	86	64	43	39	50	55	28	68	6.6	9	14	8.5
5	5	BF 20	20	26	88	60	44	34	52	50	22	70	6.6	9	14	8.5
6	6	BF 25	25	30	106	80	53	48	64	70	33	85	9	11	17.5	11
7	7	BF 30	30	32	128	89	64	51	76	78	33	102	11	14	20	13
8	8	BF 35	35	32	140	96	70	52	88	79	35	114	11	14	20	13
9	9	BF 40	40	37	160	110	80	60	100	90	37	130	14	18	26	17.5
