Bevel Gears, Ratio 1:1, Helical, 34Cr4 Steel (non-hardened)

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Bevel Gears, helical geared of quenched and tempered Steel 34Cr4, non-hardened, Ratio 1:1
Reference	SV 151616-16 ST

CAD models

Request for quotation

Product selection

Level of detail

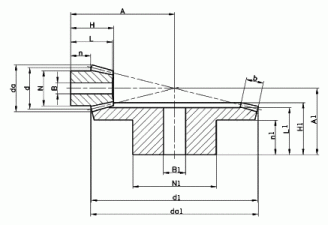

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	SV 151616-16 ST	16		1.5	1:1	24		26.1		19				15.4		16.9		24		5.9	8		H7		34Cr4
2	2	SV 151616 ST	16	16	1.5	1:1	24	24	26.1	26.1	19	19			15.4	15.4	16.9	16.9	24	24	5.9	8	8	H7	H7	34Cr4
3	3	SV 201616-16 ST	16		2	1:1	32		34.8		22		9.5		16.4		18.9		28		8.6	10		H7		34Cr4
4	4	SV 201616 ST	16	16	2	1:1	32	32	34.8	34.8	22	22	9.5	9.5	16.4	16.4	18.9	18.9	28	28	8.6	10	10	H7	H7	34Cr4
5	5	SV 251616-16 ST	16		2.5	1:1	40		43.5		30		10		18.3		21.3		33		10.1	13		H7		34Cr4
6	6	SV 251616 ST	16	16	2.5	1:1	40	40	43.5	43.5	30	30	10	10	18.3	18.3	21.3	21.3	33	33	10.1	13	13	H7	H7	34Cr4
7	7	SV 301616-16 ST	16		3	1:1	48		52.2		35		12.5		22.6		26.1		40		12.5	16		H7		34Cr4
8	8	SV 301616 ST	16	16	3	1:1	48	48	52.2	52.2	35	35	12.5	12.5	22.6	22.6	26.1	26.1	40	40	12.5	16	16	H7	H7	34Cr4
9	9	SV 351616-16 ST	16		3.5	1:1	56		60.9		40		15		26.6		30.1		47		13.2	19		H7		34Cr4
10	10	SV 351616 ST	16	16	3.5	1:1	56	56	60.9	60.9	40	40	15	15	26.6	26.6	30.1	30.1	47	47	13.2	19	19	H7	H7	34Cr4
11	11	SV 401616-16 ST	16		4	1:1	64		69.7		45		17.5		30.3		35.3		54		16.4	22		H7		34Cr4
12	12	SV 401616 ST	16	16	4	1:1	64	64	69.7	69.7	45	45	17.5	17.5	30.3	30.3	35.3	35.3	54	54	16.4	22	22	H7	H7	34Cr4
13	13	SV 451616-16 ST	16		4.5	1:1	72		78.4		50		19.5		34.7		40.2		61		18.7	25		H7		34Cr4
14	14	SV 451616 ST	16	16	4.5	1:1	72	72	78.4	78.4	50	50	19.5	19.5	34.7	34.7	40.2	40.2	61	61	18.7	25	25	H7	H7	34Cr4
15	15	SV 501616-16 ST	16		5	1:1	80		87.1		54		21		37.6		43.6		67		19.3	27		H7		34Cr4
16	16	SV 501616 ST	16	16	5	1:1	80	80	87.1	87.1	54	54	21	21	37.6	37.6	43.6	43.6	67	67	19.3	27	27	H7	H7	34Cr4
17	17	SV 501919-19 ST	19		5	1:1	95		102.1		60		23.5		43		49		77		24.4	30		H7		34Cr4
18	18	SV 501919 ST	19	19	5	1:1	95	95	102.1	102.1	60	60	23.5	23.5	43	43	49	49	77	77	24.4	30	30	H7	H7	34Cr4
19	19	SV 502222-22 ST	22		5	1:1	110		117.1		66		24		46		52		85		27.9	33		H7		34Cr4
20	20	SV 502222 ST	22	22	5	1:1	110	110	117.1	117.1	66	66	24	24	46	46	52	52	85	85	27.9	33	33	H7	H7	34Cr4
21	21	SV 502626-26 ST	26		5	1:1	130		137.1		72		25		50		56		96		32.2	36		H7		34Cr4
22	22	SV 502626 ST	26	26	5	1:1	130	130	137.1	137.1	72	72	25	25	50	50	56	56	96	96	32.2	36	36	H7	H7	34Cr4
23	23	SV 503030-30 ST	30		5	1:1	150		157.1		80		28		57		63		109		37.8	40		H7		34Cr4
24	24	SV 503030 ST	30	30	5	1:1	150	150	157.1	157.1	80	80	28	28	57	57	63	63	109	109	37.8	40	40	H7	H7	34Cr4

Contact the supplier
