Bevel Gears, 1:5 Ratio, Plastic (Injection moulded)

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Bevel Gears, straight geared of injection molded Plastic, Ratio 1:5
Reference	P101260-12

CAD models

Product selection

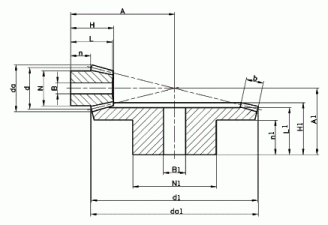

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	P101260-12	12		1	1:5	12		13.7		9.5		10		20.3		20.3		40.5		9.5	4		H7		Hostaform C
2	2	P101260-60		60	1	1:5		60		60.4		20.5		11		15.5		17.4		21	9.5		10	H7	H7	Hostaform C
3	3	P101260	12	60	1	1:5	12	60	13.7	60.4	9.5	20.5	10	11	20.3	15.5	20.3	17.4	40.5	21	9.5	4	10	H7	H7	Hostaform C Hostaform C
