Bevel Gears, 1:4 Ratio

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Bevel Gears, straight geared, Ratio 1:4
Reference	K 151560-15

CAD models

Request for quotation

Product selection

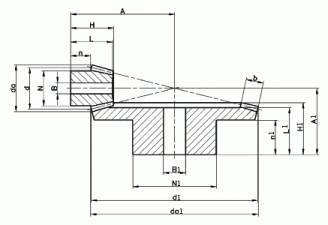

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	K 151560-15	15		1.5	1:4	22.5		25.4		20		11.7		21.5		22.2		57		10.2	10		H7		C45
2	2	K 151560-60		60	1.5	1:4		90		90.7		32		18		23		25.4		33	10.2		16	H7	H7	34Cr4
3	3	K 151560	15	60	1.5	1:4	22.5	90	25.4	90.7	20	32	11.7	18	21.5	23	22.2	25.4	57	33	10.2	10	16	H7	H7	34Cr4
4	4	K 201560-15	15		2	1:4	30		33.9		24		12.3		25.6		26.6		73		13.6	12		H7		34Cr4
5	5	K 201560-60		60	2	1:4		120		121		42		23		29		32.8		43	13.6		21	H7	H7	34Cr4
6	6	K 201560	15	60	2	1:4	30	120	33.9	121	24	42	12.3	23	25.6	29	26.6	32.8	73	43	13.6	12	21	H7	H7	34Cr4
7	7	K 251560-15	15		2.5	1:4	37.5		42.4		30		14.1		30.9		32		90		17	15		H7		34Cr4
8	8	K 251560-60		60	2.5	1:4		150		151.2		50		27.5		35		39.3		52	17		25	H7	H7	34Cr4
9	9	K 251560	15	60	2.5	1:4	37.5	150	42.4	151.2	30	50	14.1	27.5	30.9	35	32	39.3	90	52	17	15	25	H7	H7	34Cr4
10	10	K 301560-15	15		3	1:4	45		50.8		36		15.9		36		37.3		107		20.4	18		H7		34Cr4
11	11	K 301560-60		60	3	1:4		180		181.5		60		32.5		41.5		46.7		62	20.4		30	H7	H7	34Cr4
12	12	K 301560	15	60	3	1:4	45	180	50.8	181.5	36	60	15.9	32.5	36	41.5	37.3	46.7	107	62	20.4	18	30	H7	H7	34Cr4
13	13	K 351560-15	15		3.5	1:4	52.5		59.3		44		18.9		42.2		43.7		125		23.8	22		H7		34Cr4
14	14	K 351560-60		60	3.5	1:4		210		211.7		70		38.5		49.4		55.1		73	23.8		35	H7	H7	34Cr4
15	15	K 351560	15	60	3.5	1:4	52.5	210	59.3	211.7	44	70	18.9	38.5	42.2	49.4	43.7	55.1	125	73	23.8	22	35	H7	H7	34Cr4
