Bevel Gears, 1:1.5 Ratio

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Bevel Gears, straight geared, Ratio 1:1,5
Reference	K 151624-16

CAD models

Request for quotation

Product selection

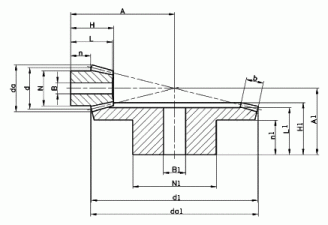

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	K 151624-16	16		1.5	1:1,5	24		26.5		18		10		17.8		18.8		30		7.6	8		H7		C45
2	2	K 151624-24		24	1.5	1:1,5		36		37.7		22		11.5		18.5		20		27	7.6		10	H7	H7	34Cr4
3	3	K 151624	16	24	1.5	1:1,5	24	36	26.5	37.7	18	22	10	11.5	17.8	18.5	18.8	20	30	27	7.6	8	10	H7	H7	34Cr4
4	4	K 201624-16	16		2	1:1,5	32		35.3		22		10		19.1		21.1		36		10.1	11		H7		34Cr4
5	5	K 201624-24		24	2	1:1,5		48		50.2		26		12		18.7		21.7		31	10.1		13	H7	H7	34Cr4
6	6	K 201624	16	24	2	1:1,5	32	48	35.3	50.2	22	26	10	12	19.1	18.7	21.1	21.7	36	31	10.1	11	13	H7	H7	34Cr4
7	7	K 251624-16	16		2.5	1:1,5	40		44.1		28		10.5		21.9		24.4		43		12.6	14		H7		34Cr4
8	8	K 251624-24		24	2.5	1:1,5		60		62.8		32		14		22.6		26.4		38	12.6		16	H7	H7	34Cr4
9	9	K 251624	16	24	2.5	1:1,5	40	60	44.1	62.8	28	32	10.5	14	21.9	22.6	24.4	26.4	43	38	12.6	14	16	H7	H7	34Cr4
10	10	K 301624-16	16		3	1:1,5	48		53		34		11		24.7		27.7		50		15.1	17		H7		34Cr4
11	11	K 301624-24		24	3	1:1,5		72		75.3		38		16.5		26.5		31		45	15.1		19	H7	H7	34Cr4
12	12	K 301624	16	24	3	1:1,5	48	72	53	75.3	34	38	11	16.5	24.7	26.5	27.7	31	50	45	15.1	17	19	H7	H7	34Cr4
13	13	K 351624-16	16		3.5	1:1,5	56		61.8		40		12.5		28.5		32		58		17.7	20		H7		34Cr4
14	14	K 351624-24		24	3.5	1:1,5		84		87.9		46		20.5		32.4		37.7		54	17.7		23	H7	H7	34Cr4
15	15	K 351624	16	24	3.5	1:1,5	56	84	61.8	87.9	40	46	12.5	20.5	28.5	32.4	32	37.7	58	54	17.7	20	23	H7	H7	34Cr4
16	16	K 401624-16	16		4	1:1,5	64		70.6		46		14		32.2		36.2		66		20.2	23		H7		34Cr4
17	17	K 401624-24		24	4	1:1,5		96		100.4		52		23		36.3		42.3		61	20.2		26	H7	H7	34Cr4
18	18	K 401624	16	24	4	1:1,5	64	96	70.6	100.4	46	52	14	23	32.2	36.3	36.2	42.3	66	61	20.2	23	26	H7	H7	34Cr4
19	19	K 451624-16	16		4.5	1:1,5	72		79.4		50		16.5		37		41.5		75		22.7	25		H7		34Cr4
20	20	K 451624-24		24	4.5	1:1,5		108		113		58		25		40.2		47		68	22.7		29	H7	H7	34Cr4
21	21	K 451624	16	24	4.5	1:1,5	72	108	79.4	113	50	58	16.5	25	37	40.2	41.5	47	75	68	22.7	25	29	H7	H7	34Cr4
22	22	K 501624-16	16		5	1:1,5	80		88.3		56		17.5		39.8		44.8		82		25.5	28		H7		34Cr4
23	23	K 501624-24		24	5	1:1,5		120		125.5		64		28		44.3		51.8		75	25.5		32	H7	H7	34Cr4
24	24	K 501624	16	24	5	1:1,5	80	120	88.3	125.5	56	64	17.5	28	39.8	44.3	44.8	51.8	82	75	25.5	28	32	H7	H7	34Cr4
