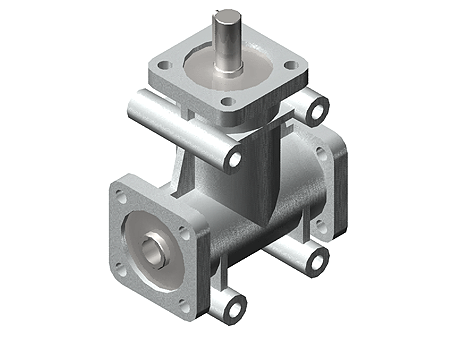

bevel gearbox Type RH

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	bevel gearbox Type RH
Part number	RH4100-M

CAD models

Request for quotation

Product selection

Index	Selector	order number	reduction	a-shaft	weight (kg)	input at 1400 U/min - KW	max. input torque (N.m)	R-load (kg)	A-load (kg)

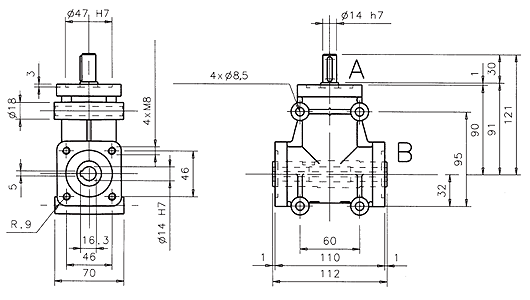

1	1	RH4100-M	1 : 1	B	2	1.83	13	25	5
2	2	RH4100-2M	2 : 1	B	2	0.5	7	25	5
3	3	RH4100-3M	3 : 1	B	2	0.25	5	25	5

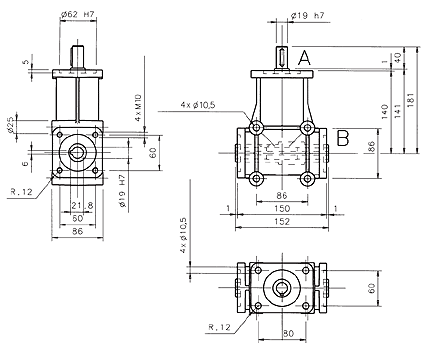

4	4	RH4200-M	1 : 1	B	4.8	5.5	38	40	8
5	5	RH4200-2M	2 : 1	B	4.8	1.83	25	40	8
6	6	RH4200-3M	3 : 1	B	4.8	0.91	18	40	8
