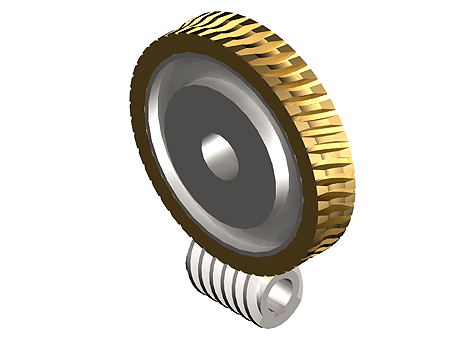

Worm Gear Set (with hollow worm), 1 - 8 leads, modul 2,0 - 4,0

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	worm gear with hollow worm, 1 - 8 leads, modul 2,0 - 4,0
Reference	B2001/R2001

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	module	no of leads right handed	reduction	No. of teeth	A (mm)	Da (mm)	e (mm)	f (mm)	N (mm)	B1 H7 (mm)	B2 H7 (mm)	da (mm)	d0 (mm)	b P9 (mm)	l (mm)	t (mm)
1	1	B2001/R2001	2	1	47:1	47	60	101	20	24	46	20	14	29	25	5	40	2.1
2	2	B2002/R2002	2	2	23,5 :1	47	60	101	20	24	46	20	14	29	25	5	40	2.1
3	3	B2003/R2003	2	3	15,33:1	46	60	101	20	24	46	20	14	29	25	5	40	2.1
4	4	B2004/R2004	2	4	11,25:1	45	60	101	20	24	46	20	14	29	25	5	40	2.1
5	5	B2005/R2005	2	5	8,6 :1	43	60	101	20	24	46	20	14	29	25	5	40	2.1
6	6	B2006/R2006	2	6	6,83:1	41	60	101	20	24	46	20	14	29	25	5	40	2.1
7	7	B2007/R2007	2	7	5,57:1	39	60	101	20	24	46	20	14	29	25	5	40	2.1
8	8	B2008/R2008	2	8	4,63:1	37	60	101	20	24	46	20	14	29	25	5	40	2.1
9	9	B2501/R2501	2.5	1	47:1	47	75	126.5	25	30	57	25	16	41.25	36.25	5	50	2.1
10	10	B2502/R2502	2.5	2	23,5 :1	47	75	126.5	25	30	57	25	16	41.25	36.25	5	50	2.1
11	11	B2503/R2503	2.5	3	15,33:1	46	75	126.5	25	30	57	25	16	41.25	36.25	5	50	2.1
12	12	B2504/R2504	2.5	4	11,25:1	45	75	126.5	25	30	57	25	16	41.25	36.25	5	50	2.1
13	13	B2505/R2505	2.5	5	8,6 :1	43	75	126.5	25	30	57	25	16	41.25	36.25	5	50	2.1
14	14	B2506/R2506	2.5	6	6,83:1	41	75	126.5	25	30	57	25	16	41.25	36.25	5	50	2.1
15	15	B2507/R2507	2.5	7	5,57:1	39	75	126.5	25	30	57	25	16	41.25	36.25	5	50	2.1
16	16	B2508/R2508	2.5	8	4,63:1	37	75	126.5	25	30	57	25	16	41.25	36.25	5	50	2.1
17	17	B3001/R3001	3	1	47:1	47	90	151.5	30	36	69	30	20	43.5	37.5	6	60	2.5
18	18	B3002/R3002	3	2	23,5 :1	47	90	151.5	30	36	69	30	20	43.5	37.5	6	60	2.5
19	19	B3003/R3003	3	3	15,33:1	46	90	151.5	30	36	69	30	20	43.5	37.5	6	60	2.5
20	20	B3004/R3004	3	4	11,25:1	45	90	151.5	30	36	69	30	20	43.5	37.5	6	60	2.5
21	21	B3005/R3005	3	5	8,6 :1	43	90	151.5	30	36	69	30	20	43.5	37.5	6	60	2.5
22	22	B3006/R3006	3	6	6,83:1	41	90	151.5	30	36	69	30	20	43.5	37.5	6	60	2.5
23	23	B3007/R3007	3	7	5,57:1	39	90	151.5	30	36	69	30	20	43.5	37.5	6	60	2.5
24	24	B3008/R3008	3	8	4,63:1	37	90	151.5	30	36	69	30	20	43.5	37.5	6	60	2.5
25	25	B3501/R3501	3.5	1	47:1	47	105	176.7	35	42	80	35	22	50.75	43.75	6	70	2.5
26	26	B3502/R3502	3.5	2	23,5 :1	47	105	176.7	35	42	80	35	22	50.75	43.75	6	70	2.5
27	27	B3503/R3503	3.5	3	15,33:1	46	105	176.7	35	42	80	35	22	50.75	43.75	6	70	2.5
28	28	B3504/R3504	3.5	4	11,25:1	45	105	176.7	35	42	80	35	22	50.75	43.75	6	70	2.5
29	29	B3505/R3505	3.5	5	8,6 :1	43	105	176.7	35	42	80	35	22	50.75	43.75	6	70	2.5
30	30	B3506/R3506	3.5	6	6,83:1	41	105	176.7	35	42	80	35	22	50.75	43.75	6	70	2.5
31	31	B3507/R3507	3.5	7	5,57:1	39	105	176.7	35	42	80	35	22	50.75	43.75	6	70	2.5
32	32	B3508/R3508	3.5	8	4,63:1	37	105	176.7	35	42	80	35	22	50.75	43.75	6	70	2.5
33	33	B4001/R4001	4	1	47:1	47	120	202	40	48	92	40	26	58	50	8	80	2.9
34	34	B4002/R4002	4	2	23,5 :1	47	120	202	40	48	92	40	26	58	50	8	80	2.9
35	35	B4003/R4003	4	3	15,33:1	46	120	202	40	48	92	40	26	58	50	8	80	2.9
36	36	B4004/R4004	4	4	11,25:1	45	120	202	40	48	92	40	26	58	50	8	80	2.9
37	37	B4005/R4005	4	5	8,6 :1	43	120	202	40	48	92	40	26	58	50	8	80	2.9
38	38	B4006/R4006	4	6	6,83:1	41	120	202	40	48	92	40	26	58	50	8	80	2.9
39	39	B4007/R4007	4	7	5,57:1	39	120	202	40	48	92	40	26	58	50	8	80	2.9
40	40	B4008/R4008	4	8	4,63:1	37	120	202	40	48	92	40	26	58	50	8	80	2.9
