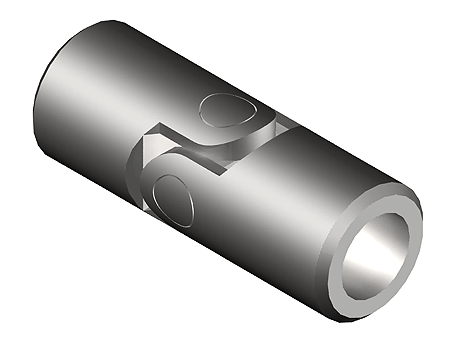

Universal Joint (Single), Plain bearings, DIN808-G/DIN7551

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Single universal joint with slide bearings, DIN 808-G [former DIN 7551]
Reference	100AA

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	D1 H7 (mm)	D2 (mm)	L1 -1 (mm)	L2 ±1 (mm)	L4 ±0,5 (mm)	B P9 (mm)	T +0,2 (mm)	S (mm)	D h7 (mm)	L -1 (mm)	Weight (kg)
1	1	100	6	10	14	40	20	-	-	-	-	-	0.014
2	2	101	8	13	13	42	21	2	9,0	6	10	12	0.024
3	3	101SS	8	13	13	42	21	2	9,0	6	10	12	0.024
4	4	102	10	16	17	52	26	3	11,4	8	13	15	0.047
5	5	102SS	10	16	17	52	26	3	11,4	8	13	15	0.047
6	6	103	12	20	20	62	31	4	13,8	10	16	18	0.089
7	7	103SS	12	20	20	62	31	4	13,8	10	16	18	0.089
8	8	104	16	25	23	74	37	5	18,3	14	20	22	0.16
9	9	104SS	16	25	23	74	37	5	18,3	14	20	22	0.16
10	10	105	20	32	25	86	43	6	22,8	19	25	25	0.31
11	11	105SS	20	32	25	86	43	6	22,8	19	25	25	0.31
12	12	106	25	40	32	108	54	8	28,3	24	32	32	0.625
13	13	106SS	25	40	32	108	54	8	28,3	24	32	32	0.625
14	14	107	32	50	41	132	66	10	35,3	30	40	40	1.2
15	15	107SS	32	50	41	132	66	10	35,3	30	40	40	1.2
16	16	108	40	63	47	166	83	12	43,3	36	50	50	2.4
17	17	108SS	40	63	47	166	83	12	43,3	36	50	50	2.4

Version left

Standard version round

Version right

Standard version round
