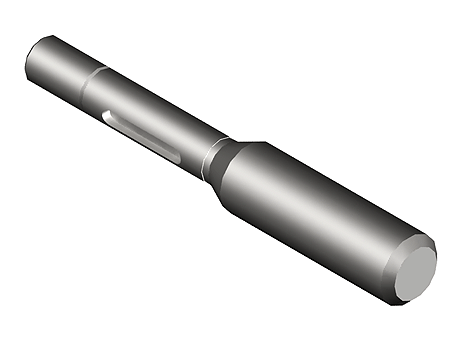

Trapezoidal Spindle SE

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Trapezoidal Thread Spindle SE
Reference	SE2-TK0

CAD models

Request for quotation

Product selection

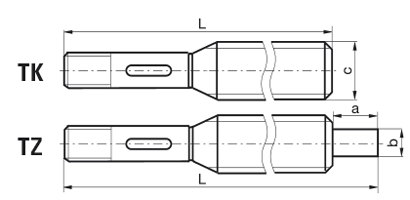

Index	Selector	Order no.	c	L (mm)
1	1	SE2-TK	TR 14 x 4	104 + stroke
2	2	SE5-TK	TR 18 x 4	119 + stroke
3	3	SE10-TK	TR 20 x 4	135 + stroke
4	4	SEO25-TK	TR 30 x 6	181 + stroke
5	5	SEO50-TK	TR 40 x 7	225 + stroke
6	6	SEO100-TK	TR 60 x 9	301 + stroke
7	7	SE2-TZ	TR 14 x 4	119 + stroke
8	8	SE5-TZ	TR 18 x 4	134 + stroke
9	9	SE10-TZ	TR 20 x 4	155 + stroke
10	10	SEO25-TZ	TR 30 x 6	206 + stroke
11	11	SEO50-TZ	TR 40 x 7	255 + stroke
12	12	SEO100-TZ	TR 60 x 9	356 + stroke

Stroke (mm)

Contact the supplier
