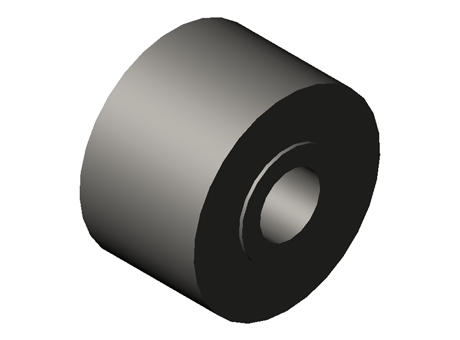

Support Rollers without bolt

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Support Rollers without Journals
Reference	HPCA62

CAD models

Request for quotation

Product selection

Index	Selector	Order No.	A (mm)	B (mm)	E (mm)	P (mm)	R (mm)	S (mm)	Weight (kg)
1	1	HPCA62	62	40	38	20	32	1	0.81
2	2	HPCA76	76	46	44	25	44.5	1	1.4
3	3	HPCA80	80	46	44	25	44.5	1	1.57
4	4	HPCA85	85	46	44	25	44.5	1	1.79
5	5	HPCA90	90	56	54	30	57.2	1	2.4
6	6	HPCA100	100	56	54	30	57.2	1	3.03
7	7	HPCA125	125	71	68	45	82.6	1.5	5.7
8	8	HPCA150	150	73	70	55	88.9	1.5	8.4
9	9	HPCA200	200	79	76	70	108	1.5	16.45
10	10	HPCA250	250	79	76	70	108	1.5	26.99
