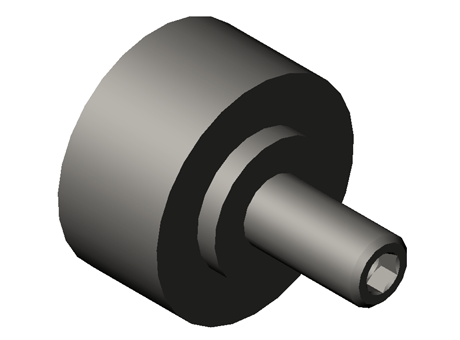

support roller

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	support roller
Reference	CC210

CAD models

Product selection

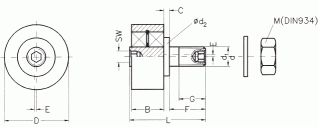

Index	Selector	Order no.	guide rail	B (mm)	C (mm)	D (mm)	d	d1 (mm)	d2 (mm)	E (mm)	F (mm)	G (mm)	L (mm)	M	SW (mm)	radial load (N)
1	1	CC210	BS-040F	17	3	34	M10	10	20		19	14	40	M10	5	1300
2	2	EC210	BS-040F	17	3	34	M10	10	20	1	19	14	40	M10	5	1300
