Spline Hub, SS (1.4305), Standard: DIN ISO 14-A (DIN 5463)

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Spline hub to DIN ISO 14_A [DIN 5463} made of Stainless Steel 1.4305
Reference	00001/SS

CAD models

Request for quotation

Product selection

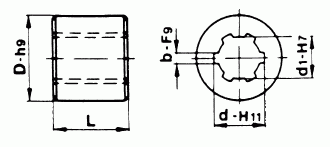

Index	Selector	Order no.	Number of Wedge	d (mm)	d1 (mm)	b (mm)	D (mm)	L (mm)	Weight (kg)	Material
1	1	00001/SS	6	14	11	3	20	40	0.06	1.4305
2	2	00002/SS	6	16	13	3.5	28	45	0.16	1.4305
3	3	00003/SS	6	20	16	4	32	45	0.2	1.4305
4	4	KM18SS	6	22	18	5	40	50	0.27	1.4305
5	5	00004/SS	6	25	21	5	40	55	0.36	1.4305
6	6	KM23SS	6	28	23	6	50	55	0.47	1.4305
7	7	00005/SS	6	32	26	6	52	60	0.7	1.4305
8	8	KM28SS	6	34	28	7	60	60	0.76	1.4305
9	9	00006/SS	8	38	32	6	60	60	0.88	1.4305
10	10	KM36SS	8	42	36	7	70	65	1.08	1.4305
11	11	00007/SS	8	48	42	8	65	70	0.94	1.4305
12	12	KM42LSS	8	48	42	8	80	70	1.88	1.4305
