Spline Hub (Round), Steel (C45), Standard: DIN ISO 14-A (DIN 5463)

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Spline hub to DIN ISO 14_A [DIN 5463} made of C45
Reference	00001

CAD models

Request for quotation

Product selection

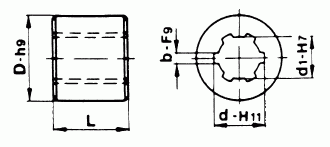

Index	Selector	Order no.	Number of Wedge	d (mm)	d1 (mm)	b (mm)	D (mm)	L (mm)	Weight (kg)	Material
1	1	00001	6	14	11	3	20	40	0.06	C45
2	2	00002	6	16	13	3.5	28	45	0.16	C45
3	3	00003	6	20	16	4	32	45	0.2	C45
4	4	KM18	6	22	18	5	40	50	0.27	C45
5	5	00004	6	25	21	5	40	55	0.36	C45
6	6	KM23	6	28	23	6	50	55	0.47	C45
7	7	00005	6	32	26	6	52	60	0.7	C45
8	8	KM28	6	34	28	7	60	60	0.76	C45
9	9	00006	8	38	32	6	60	60	0.88	C45
10	10	KM36	8	42	36	7	70	65	1.08	C45
11	11	00007	8	48	42	8	65	70	0.94	C45
12	12	KM42L	8	48	42	8	80	70	1.88	C45
