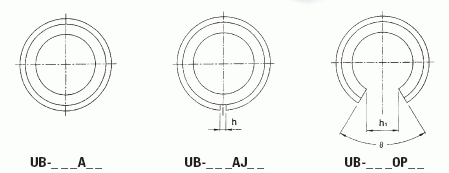

Spherical bushing, light series, closed, groved and open version, Manufacturer: Hiwin

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Spherical bushing, light series, closed, groved and open version, Manufacturer: Hiwin
Reference	UB-12A

CAD models

Product selection

Index	Selector	Order no.	d (mm)	Tolerance (µm)	D (mm)	Tolerance (µm)	L (mm)	Tolerance (µm)	B (mm)	Tolerance (µm)	W (mm)	D1 (mm)	h (mm)	h1 (mm)	? (°)	C dyn. (N)	C stat. (N)
1	1	UB-12A	12	0 +8	22	0 -9	32	0 -200	22.9	0 -200	1.3	21	1.5	7	54	640	950
2	2	UB-12AJ	12	0 +8	22	0 -9	32	0 -200	22.9	0 -200	1.3	21	1.5	7	54	640	950
3	3	UB-12OP	12	0 +8	22	0 -9	32	0 -200	22.9	0 -200	1.3	21	1.5	7	54	640	950
4	4	UB-16A	16	-1 +9	26	0 -9	36	0 -200	24.9	0 -200	1.3	24.9	1.5	9.6	60	720	1120
5	5	UB-16AJ	16	-1 +9	26	0 -9	36	0 -200	24.9	0 -200	1.3	24.9	1.5	9.6	60	720	1120
6	6	UB-16OP	16	-1 +9	26	0 -9	36	0 -200	24.9	0 -200	1.3	24.9	1.5	9.6	60	720	1120
7	7	UB-20A	20	-1 +9	32	0 -11	45	0 -200	31.5	0 -200	1.6	30.3	2	11.7	60	920	1480
8	8	UB-20AJ	20	-1 +9	32	0 -11	45	0 -200	31.5	0 -200	1.6	30.3	2	11.7	60	920	1480
9	9	UB-20OP	20	-1 +9	32	0 -11	45	0 -200	31.5	0 -200	1.6	30.3	2	11.7	60	920	1480
10	10	UB-25A	25	-1 +11	40	0 -11	58	0 -300	44.1	0 -300	1.85	37.5	2	14.4	60	1070	1670
11	11	UB-25AJ	25	-1 +11	40	0 -11	58	0 -300	44.1	0 -300	1.85	37.5	2	14.4	60	1070	1670
12	12	UB-25OP	25	-1 +11	40	0 -11	58	0 -300	44.1	0 -300	1.85	37.5	2	14.4	60	1070	1670
13	13	UB-30A	30	-1 +11	47	0 -13	68	0 -300	52.1	0 -300	1.85	44.5	2	16.9	60	1630	2850
14	14	UB-30AJ	30	-1 +11	47	0 -13	68	0 -300	52.1	0 -300	1.85	44.5	2	16.9	60	1630	2850
15	15	UB-30OP	30	-1 +11	47	0 -13	68	0 -300	52.1	0 -300	1.85	44.5	2	16.9	60	1630	2850
16	16	UB-40A	40	-2 +13	62	0 -13	80	0 -300	60.6	0 -300	2.15	59	3	22	60	2250	4200
17	17	UB-40AJ	40	-2 +13	62	0 -13	80	0 -300	60.6	0 -300	2.15	59	3	22	60	2250	4200
18	18	UB-40OP	40	-2 +13	62	0 -13	80	0 -300	60.6	0 -300	2.15	59	3	22	60	2250	4200
19	19	UB-50A	50	-2 +13	75	0 -13	100	0 -300	77.6	0 -300	2.65	72	3	21	50	3950	8200
20	20	UB-50AJ	50	-2 +13	75	0 -13	100	0 -300	77.6	0 -300	2.65	72	3	21	50	3950	8200
21	21	UB-50OP	50	-2 +13	75	0 -13	100	0 -300	77.6	0 -300	2.65	72	3	21	50	3950	8200

Index	Selector	Sealing	Addon
1	1	No sealing
2	2	Single sided sealing	W
3	3	Double sided sealing	WW
