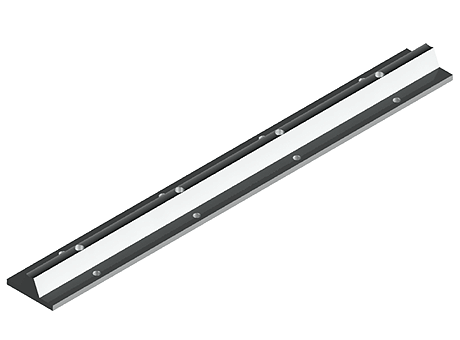

Shaft supports, Aluminum, with or without mounting bores

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Shaft supports, Aluminum, with or without mounting bores
Reference	FTSN12G

CAD models

Product selection

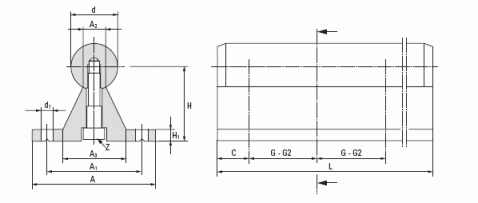

Index	Selector	Order no.	L (mm)	d (mm)	A (mm)	H (mm)	A2 (mm)	C (mm)	A3 (mm)	H1 (mm)	A1 (mm)	d1 (mm)	G (mm)	G2 (mm)	Z
1	1	FTSN12G	600	12	40	22	5.8	37.5	15	5	29	4.5	75		M4
2	2	FTSN12G2	600	12	40	22	5.8	60	15	5	29	4.5		120	M4
3	3	FTSN12	600	12	40	22	5.8		15	5
4	4	FTSN16G	600	16	45	26	7	50	19	5	33	5.5	100		M5
5	5	FTSN16G2	600	16	45	26	7	75	19	5	33	5.5		150	M5
6	6	FTSN16	600	16	45	26	7		19	5
7	7	FTSN20G	600	20	52	32	8.3	50	23	6	37	6.6	100		M6
8	8	FTSN20G2	600	20	52	32	8.3	75	23	6	37	6.6		150	M6
9	9	FTSN20	600	20	52	32	8.3		23	6
10	10	FTSN25G	600	25	57	36	10.8	60	26	6	42	6.6	120		M8
11	11	FTSN25G2	600	25	57	36	10.8	100	26	6	42	6.6		200	M8
12	12	FTSN25	600	25	57	36	10.8		26	6
13	13	FTSN30G	600	30	69	42	11	75	29	7	51	9	150		M10
14	14	FTSN30G2	600	30	69	42	11	100	29	7	51	9		200	M10
15	15	FTSN30	600	30	69	42	11		29	7
16	16	FTSN40G	600	40	73	50	15	100	36	9	55	9	200		M10
17	17	FTSN40G2	600	40	73	50	15	150	36	9	55	9		300	M10
18	18	FTSN40	600	40	73	50	15		36	9
19	19	FTSN50G	600	50	84	60	19	100	40	9	63	11	200		M12
20	20	FTSN50G2	600	50	84	60	19	150	40	9	63	11		300	M12
21	21	FTSN50	600	50	84	60	19		40	9
