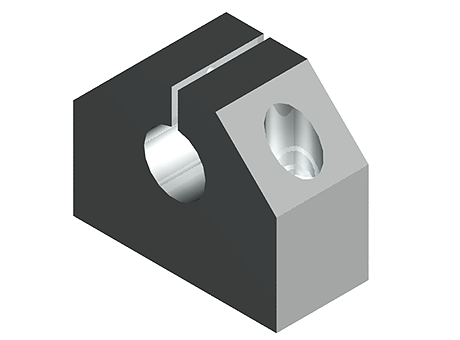

Shaft blocks, Aluminum, groved version, Series FGWH, FGWN

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Shaft blocks, Aluminum, groved version, Series FGWH, FGWN
Reference	FGWH 06

CAD models

Request for quotation

Product selection

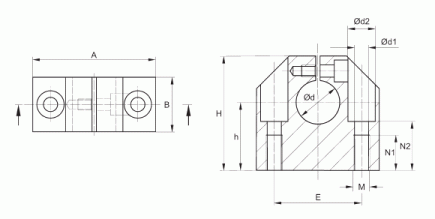

Index	Selector	Order no.	Ø d (mm)	A (mm)	B (mm)	H (mm)	h ± 0.02 (mm)	E ± 0.15 (mm)	Ø d1 (mm)	Ø d2 (mm)	M (mm)	N1 (mm)	N2 (mm)
1	1	FGWH 06	6	32	16	27	15	22	4.2	8	M5	11	13
2	2	FGWH 08	8	32	16	27	16	22	4.2	8	M5	11	13
3	3	FGWN 08	8	32	18	28	15	22	3.3	6	M4	9	13
4	4	FGWH 10	10	40	18	33	18	27	5.2	10	M6	13	16
5	5	FGWH 12	12	40	18	33	19	27	5.2	10	M6	13	16
6	6	FGWN 12	12	43	20	35	20	30	5.2	10	M6	13	16
7	7	FGWH 14	14	45	20	38	20	32	5.2	10	M6	13	18
8	8	FGWH 16	16	45	20	38	22	32	5.2	10	M6	13	18
9	9	FGWN 16	16	53	24	42	25	38	6.8	11	M8	18	21
10	10	FGWH 20	20	53	24	45	25	39	6.8	11	M8	18	22
11	11	FGWN 20	20	60	30	50	30	42	8.6	15	M10	22	25
12	12	FGWH 25	25	62	28	54	31	44	8.6	15	M10	22	26
13	13	FGWN 25	25	78	38	60	35	56	10.3	18	M12	26	30
14	14	FGWH 30	30	67	30	60	34	49	8.6	15	M10	22	29
15	15	FGWN 30	30	87	40	70	40	64	10.3	18	M12	26	34
16	16	FGWH 40	40	87	40	76	42	66	10.3	18	M12	26	38
17	17	FGWN 40	40	108	48	90	50	82	14.25	20	M16	34	44
18	18	FGWH 50	50	103	50	92	50	80	14.25	20	M16	34	46
19	19	FGWN 50	50	132	58	105	60	100	17.5	26	M20	43	49
