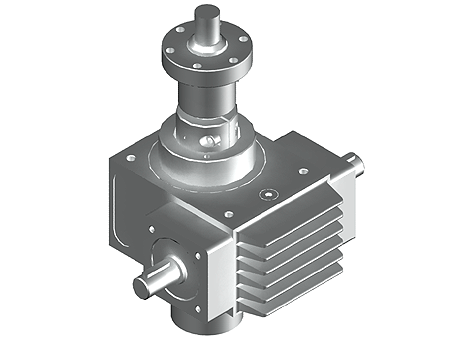

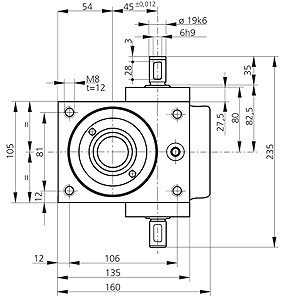

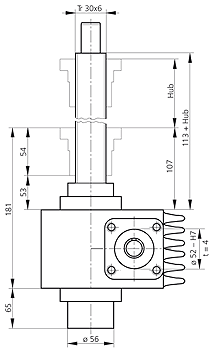

Screw Jack SH25 with rotating spindle, max. Lifting Force 25000 N

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Screw Jack SH25 with rotating Piston Rod, max. Lifting Force 25000 N
Reference	SH 25-NR
Note	Spindle: SH25-TZ0
Note 1	Flange Nut: SH25-FMN

CAD models

Product selection

Index	Selector	Order no.	Max. Lifting Force (N)	Max input speed (rpm)	Max. input torque (N.m)	Spindle diameter	Reduction	Material	Tolerances	Weight without spindle (kg)	Lubrication	Gear
1	1	SH 25-NR	25000	3000	12.6	TR 30 x 6	6:1	Aluminium	± 0,2	5.7	Oil	selbsthemmend
2	2	SH 25-LR	25000	3000	5.1	TR 30 x 6	24:1	Aluminium	± 0,2	5.7	Oil	selbsthemmend

Stroke (mm)

Flange Nut extended (mm)
