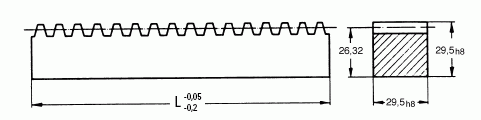

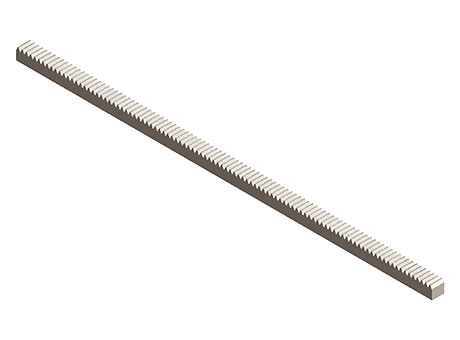

Measuring Rack, 10mm Pitch, 20° PA

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	measuring rack, straight geared, Pressure Angle 20°, Pitch 10 mm
Reference	24-Mess100-1000 W

CAD models

Product selection

Index	Selector	Order No.	Length L (mm)	Pitch - Single Deviation Tooth / Tooth (µm)	Pitch - Total Deviation to 1000 mm (µm)	Tooth Quality	Surface	Tooth machining	Material	Weight (kg)
1	1	24-Mess100-1000 W	1000	8	50	7 h25	allseitig geschliffen	feinstgestoßen	1.1191 [Ck 45]	6.09
