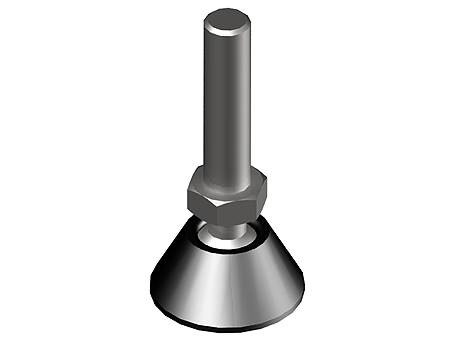

Machine Footing

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Machine Footing
Reference	MF 8.26
Note	Damper

CAD models

Product selection

Index	Selector	Order no.	Order no. Damper	M	D (mm)	D1 (mm)	H (mm)	h (mm)	HD (mm)	L (mm)	m1 (mm)	n (mm)	O (mm)	Width Flat	SW (mm)	Load (N)	Weight Foot (kg)	Weight Damper (kg)
1	1	MF 8.26		M 8		26	55	22		33	5			hexagon	12	3000	0.024
2	2	MF 8.30		M 8		30	55	22		33	5			hexagon	12	3000	0.027
3	3	MF 8.47		M 8		47	55	22		33	5			hexagon	12	3000	0.033
4	4	MF 8.50	MF D50	M 8	43	50	60	15	61	40				hexagon	12	10000	0.032	0.008
5	5	MF 10.50	MF D50	M 10	43	50	55	15	56	33				hexagon	12	10000	0.042	0.008
6	6	MF 12.50	MF D50	M 12	43	50	90	15	91	69				hexagon	12	10000	0.074	0.008
7	7	MF 14.50	MF D50	M 14	43	50	90	15	91	68				hexagon	13	10000	0.096	0.008
8	8	MF 16.80	MF D80	M 16	70	80	90	17	91	61				flattened	13	10000	0.156	0.028
9	9	MF 20.100	MF D100	M 20	92	102	180	22	183	150				flattened	16	12000	0.456	0.056
10	10	MF 24.100	MF D100	M 24	92	102	183	22	185	146				flattened	19	12000	0.596	0.056
11	11	MF 16.60	MF D60	M 16	53.5	60	185	21	188	151				flattened	13	10000	0.32	0.016
12	12	MF 20.60	MF D60	M 20	53.5	60	185	21	188	150				flattened	16	10000	0.41	0.016
13	13	MF 24.60	MF D60	M 24	53.5	60	185	21	188	146				flattened	19	10000	0.548	0.016
14	14	MF 8.80B	MF D80	M 8	70	80	65	16	67	40		9	54	hexagon	12	9000	0.052	0.028
15	15	MF 10.80B	MF D80	M 10	70	80	95	16	97	71		9	54	hexagon	12	9000	0.062	0.028
16	16	MF 12.80B	MF D80	M 12	70	80	95	16	97	69		9	54	hexagon	12	9000	0.094	0.028
17	17	MF 14.80B	MF D80	M 14	70	80	85	16	87	56		9	54	flattened	11	10000	0.13	0.028
18	18	MF 16.80B	MF D80	M 16	70	80	90	16	92	61		9	54	flattened	13	10000	0.158	0.028
19	19	MF 20.80B	MF D80	M 20	70	80	130	16	132	100		9	54	flattened	19	10000	0.28	0.028
20	20	MF 24.100B	MF D100	M 24	92	102	185	19	188	146		11	74	flattened	22	12000	0.596	0.048

Damper
