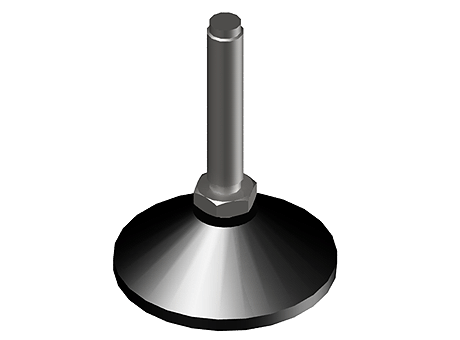

Machine Footing and Base Plate

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Machine Footing and Base Plate
Reference	B67.02.003

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	Damper	M	D (mm)	D1 (mm)	H (mm)	h (mm)	HD (mm)	L (mm)	m (mm)	m1 (mm)	SW (mm)	Load (N)	Weight (kg)
1	1	B67.02.003	without Damper	M 16		95	127	30		85	13	8	24	10000	0.922
2	2	B67.02.004	without Damper	M 20		95	162	30		120	16	8	30	10000	1.074
3	3	B67.02.005	with Damper	M 16	92	95	127	30	133	85	13	8	24	10000	0.886
4	4	B67.02.006	with Damper	M 20	92	95	162	30	168	120	16	8	30	10000	1.038
