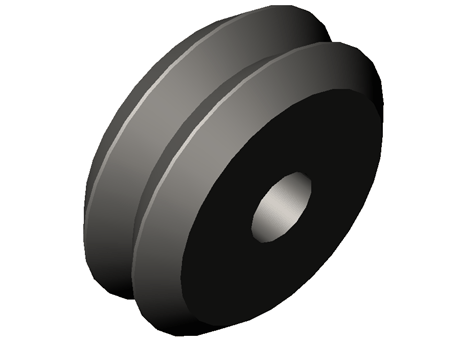

LinTrek Guide Rollers

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	LinTrek Guide Rollers
Reference	FR-1
Material	AISI 52100
Note	Blech

CAD models

Request for quotation

Product selection

Index	Selector	Order No.	Type of Seal	Material	A (mm)	B (mm)	C (mm)	MDW inside (mm)	MDW outside (mm)	Weight (g)
1	1	FR-1	Blech	AISI 52100	19.55	7.87	4.76	7.92	11.86	12
2	2	FR-2	Blech	AISI 52100	30.73	11.09	9.52	12.7	18.23	40
3	3	FR-3	Blech	AISI 52100	45.72	15.87	12	19.05	26.97	136
4	4	FR-4	Blech	AISI 52100	59.94	19.05	15.01	25.4	34.92	285
5	5	FR-1D	Neopren	AISI 52100	19.55	7.87	4.76	7.92	11.86	12
6	6	FR-2D	Neopren	AISI 52100	30.73	11.09	9.52	12.7	18.23	40
7	7	FR-3D	Neopren	AISI 52100	45.72	15.87	12	19.05	26.97	136
8	8	FR-4D	Neopren	AISI 52100	59.94	19.05	15.01	25.4	34.92	285
9	9	FR-1DSS	Neopren	1.4305	19.55	7.87	4.76	7.92	11.86	12
10	10	FR-2DSS	Neopren	1.4305	30.73	11.09	9.52	12.7	18.23	40
11	11	FR-3DSS	Neopren	1.4305	45.72	15.87	12	19.05	26.97	136
12	12	FR-4DSS	Neopren	1.4305	59.94	19.05	15.01	25.4	34.92	285
