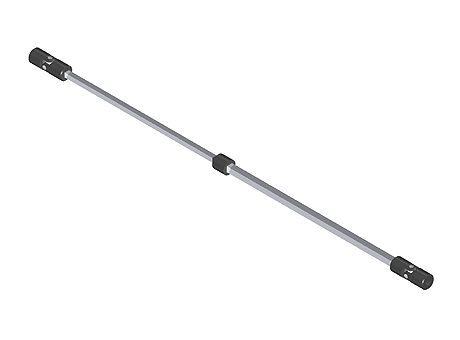

HUCO-POL® Plastic Universal Joint (Telescopic), Type BC

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	HUCO-POL® plastic telescopic shaft. Type BC
Reference	128.09.240 3.175 3.175

CAD models

Request for quotation

Product selection

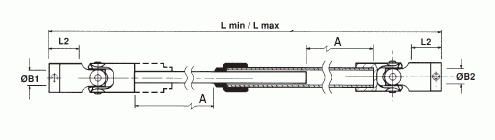

Index	Selector	Order no.	D (mm)	Lmin (mm)	Lmax (mm)	A (mm)	B1+B2 Ø min (mm)	B1+B2 Ø max (mm)	L2 (mm)	Joints	Pulse torque (N.m)	Static rupture torque (N.m)	Gewicht (g)
1	1	128.09.240	11.1	240	389	149	3.175	5	13.1	E9B	0.36	1.9	34
2	2	128.13.300	14.3	300	484	184	4	6.35	15.7	E13B	0.85	4.5	54
3	3	128.16.450	17.5	450	730	280	6	10	22.3	E16B	1.6	6.8	131
4	4	495.09.240	11.1	240	389	149	3.175	5	13.1	E9B	0.36	1.9	34
5	5	495.13.300	14.3	300	484	184	4	6.35	15.7	E13B	0.85	4.5	54
6	6	495.16.450	17.5	450	730	280	6	10	22.3	E16B	1.6	6.8	131

B1 (mm)

B2 (mm)
