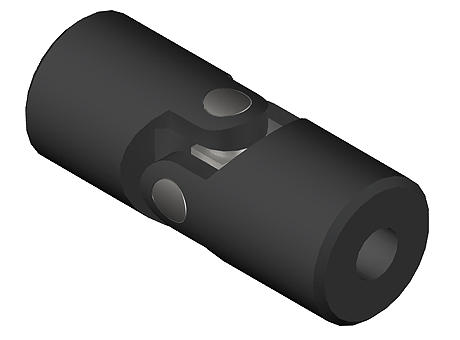

HUCO-POL® Plastic Universal Joint, (Single), Type A

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	HUCO-POL® plastic universal joint, type A, single
Reference	E6A3-3

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	D (mm)	L (mm)	F (mm)	B1+B2 Ø min (mm)	B1+B2 Ø max (mm)	L2 (mm)	Pulse torque (N.m)	Static rupture torque (N.m)	Torsional stiffness (Nm/rad)	J kgm²x10-8	Gewicht (g)	Max. extension ang ±0	Max shaft load (N)
1	1	E6A	7.1	19.1	3.3	3	4.76	5.3	0.11	0.45	2.9	0.3	0.7	45	18
2	2	E9A	11.1	28.5	4.3	4	6.35	8.6	0.36	1.9	8.4	4	2.7	45	38
3	3	E13A	14.3	35.6	5.6	6	8	10.4	0.85	4.5	18	14.3	5.7	45	67
4	4	E16A	17.5	53.3	8.9	8	10	15.2	1.6	6.8	34	32.3	12.2	45	98

B1 (mm)

B2 (mm)

Contact the supplier

TEA Transmissions

TEA Transmissions in Tiaro, Queensland, is an Australian-owned specialist for linear motion and mechanical engineering since 1986. We provide an extensive range of global products, many in stock and available via CAD download. We specialize in sourcing hard-to-find components and custom OEM parts through our international network, delivering expert solutions backed by a global reputation.
