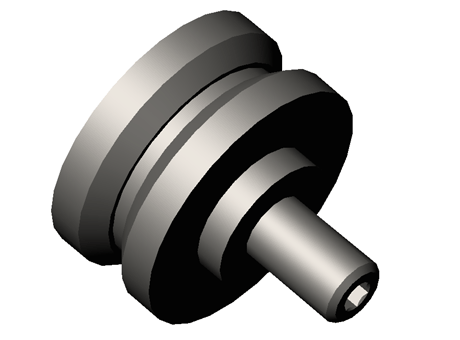

Guide Wheels, 90°, One-piece outer

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	guide rollers, 90°, single part outer ring
Reference	RK-902-Z

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	A (mm)	B (mm)	C (mm)	D (mm)	d	d1 (mm)	d2 (mm)	E (mm)	F (mm)	G (mm)	H (mm)	K (mm)	L (mm)	M	N (mm)	O (mm)	SW (mm)	P (mm)
1	1	RK-902-Z	8	11	2.5	23	M6	6	12		9.5	7	1	5	24	M6	18.6	19.1	2.5	1.5
2	2	RK-903-Z	9	14	2	30	M8	8	14		13.6	9.3	0.4	7	30	M8	24	24.5	3	1.5
3	3	RK-904-Z	11.5	17	3	38	M10	10	20		19	15	2.2	10	41.2	M10	31.25	31.75	5	1.5
4	4	RK-905-Z	19	25	6.5	58	M16	16	25		24	14	2.5	17	58	M16	44.5	45.5	8	2
5	5	RK-902-E	8	11	2.5	23	M6	6	12	1	9.5	7	1	5	24	M6	18.6	19.1	2.5	1.5
6	6	RK-903-E	9	14	2	30	M8	8	14	1	13.6	9.3	0.4	7	30	M8	24	24.5	3	1.5
7	7	RK-904-E	11.5	17	3	38	M10	10	20	1	19	15	2.2	10	41.2	M10	31.25	31.75	5	1.5
8	8	RK-905-E	19	25	6.5	58	M16	16	25	1.5	24	14	2.5	17	58	M16	44.5	45.5	8	2
