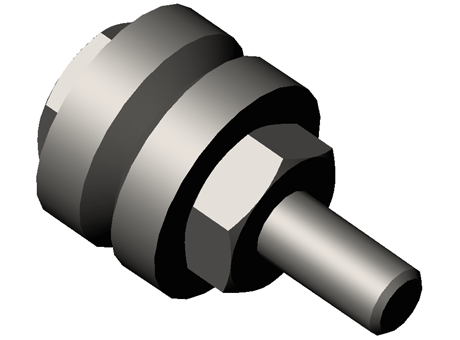

Guide Wheels, 70°, One-piece outer

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	guide rollers, 90°, single part outer ring
Reference	RL-702-Z

CAD models

Request for quotation

Product selection

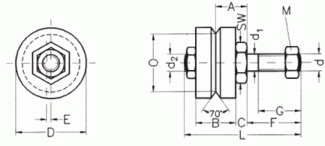

Index	Selector	Order no.	Sealing	A (mm)	B (mm)	C (mm)	D (mm)	d	d1 (mm)	d2	E (mm)	F (mm)	G (mm)	L (mm)	M	O (mm)	SW (mm)
1	1	RL-702-Z	Blech	11	14	4	25	M6	6	M8		19	15	43	M6	20.4	13
2	2	RL-703-Z	Blech	13	18	4	34	M10x1	10	M10x1		21	15	50	M10x1	27.16	17
3	3	RL-702-E	Blech	11	14	4	25	M6	6	M8	1.5	19	15	43	M6	20.4	13
4	4	RL-703-E	Blech	13	18	4	34	M10x1	10	M10x1	1.5	21	15	50	M10x1	27.16	17
5	5	RL-701-ZD	NBR	7.1	8	3.1	12.7	M4	4	M4		8	4.5	21.5	M4	9.64	8
6	6	RL-702-ZD	NBR	11	14	4	25	M6	6	M8		19	15	43	M6	20.4	13
7	7	RL-703-ZD	NBR	13	18	4	34	M10x1	10	M10x1		21	15	50	M10x1	27.16	17
8	8	RL-701-ED	NBR	7.1	8	3.1	12.7	M4	4	M4	0.5	8	4.5	21.5	M4	9.64	8
9	9	RL-702-ED	NBR	11	14	4	25	M6	6	M8	1.5	19	15	43	M6	20.4	13
10	10	RL-703-ED	NBR	13	18	4	34	M10x1	10	M10x1	1.5	21	15	50	M10x1	27.16	17
