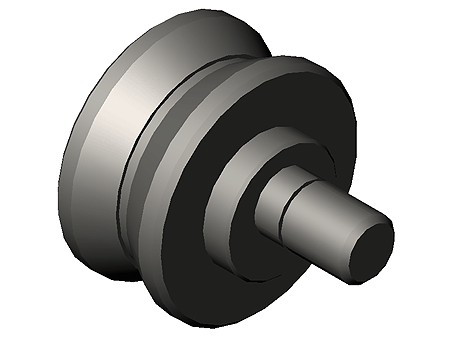

Guide Roller, Eccentric bolt, Drawing dimensioned w/ hexagon shaft

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Guide Roller eccentric on hexagon Profile
Reference	E106

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	D (mm)	l2 (mm)	CH (mm)	CH min (mm)	CH max (mm)	Axial load (N)	Radial Load (N)	Weight (g)
1	1	E106	22	17	14		15	300	300	30
2	2	E208	30	23	19			400	1000	65
3	3	E208R	30	23	19			600	1300	75
4	4	E210	39	30.5	24			600	1300	150
5	5	E312	40	30.5	24			800	1600	165
6	6	E316	40	33	30	24	36	1600	3500	210
7	7	E416	57	41	30		36	1600	3500	415
8	8	E416R	58	41	30	27	36	4300	4300	430
9	9	E420	57	41	30		36	5000	7850	490
