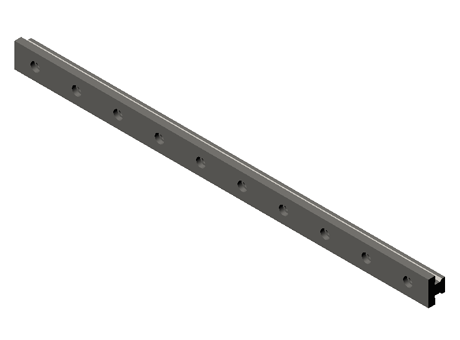

Guide Rails GFS with integrated Spacer Rail

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Guide Rails GFS with integrated Spacer Rail
Reference	GFS-0-30-20-AH
Note	500 mm

CAD models

Product selection

Index	Selector	Order no.	b (mm)	H (mm)	b1 (mm)	h (mm)	d (mm)	d1 (mm)	t (mm)	l1 (mm)	l max (mm)	Material	Weight (kg/m)
1	1	GFS-0-30-20-AH	30	20	16	8	11	6.6	4.8	50	3500	Aluminium hartanodisiert	0.95
2	2	GFS-2-60-35-AH	60	35	30	15	18	11	7.5	100	3500	Aluminium hartanodisiert	3.85

Length (mm)
