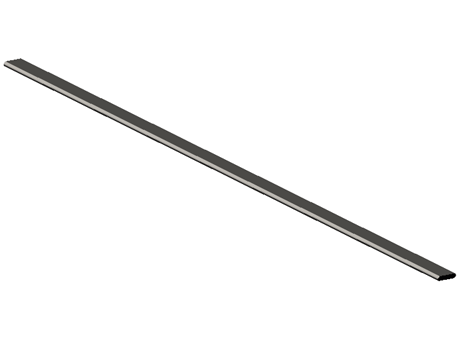

Guide Rails, 90°, Double-edged

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	guide rollers, 90°, single part outer ring
Reference	BS-9025-2
Note	500 mm

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	centric guide rollers	excentric guide rollers	spacer rail	A (mm)	B ±0,025 (mm)	C ±0,02 (mm)	L max (mm)	Material
1	1	BS-9025-2	RK-902-Z RK-903-Z	RK-902-E RK-903-E	DS-25-K	25	25.74	4.5	3000	1.3505
2	2	BS-9050-3	RK-902-Z RK-903-Z	RK-902-E RK-903-E	DS-50	50	50.74	4.5	3000	1.3505
3	3	BS-9044-4	RK-904-Z	RK-904-E	DS-44-K	44	44.74	6	3000	1.3505
4	4	BS-9076-5	RK-905-Z	RK-905-E	DS-76	76	76.74	9	3000	1.2103
