Friction coupling LF / LFG with overload protection

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Friction coupling LF / LFG with overload protection
Reference	LF50LS-12

CAD models

Request for quotation

Product selection

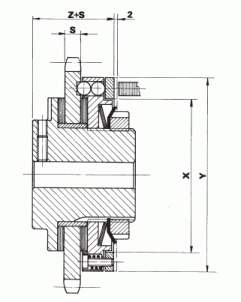

Index	Selector	Order no.	Ø X (mm)	Ø Y (mm)	Z (mm)
1	1	LF50LS	51	75	30
2	2	LFG50LS	51	75	30
3	3	LF70LS	71	95	36
4	4	LFG70LS	71	95	36
5	5	LF90LS	91	115	38
6	6	LFG90LS	91	115	38
7	7	LF115LS	116	140	40
8	8	LFG115LS	116	140	40
9	9	LF140LS	141	165	43
10	10	LFG140LS	141	165	43
11	11	LF170LS	171	195	48
12	12	LFG170LS	171	195	48

Ø D (mm)

Index	Selector	Pitch of chain	S (mm)	Teeth
1	1	3/8''	5.2	28
2	2	1/2''	7	22
