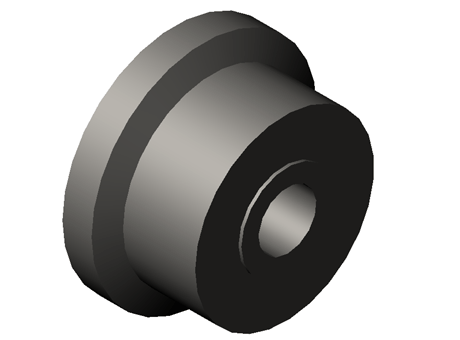

Flange Rollers without bolt

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Flange Rollers without Journals
Reference	HPJA62

CAD models

Request for quotation

Product selection

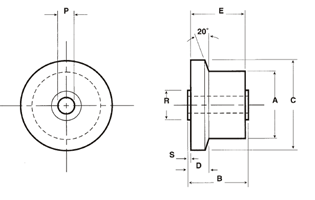

Index	Selector	Order No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	P (mm)	R (mm)	S (mm)	Weight (kg)
1	1	HPJA62	62	40	78	14	38	20	32	1	0.91
2	2	HPJA76	76	46	98	13.5	44	25	44.5	1	1.65
3	3	HPJA80	80	46	102	13.5	44	25	44.5	1	1.82
4	4	HPJA85	85	46	107	13.5	44	25	44.5	1	2.06
5	5	HPJA90	90	56	112	13.5	54	30	57.2	1	2.68
6	6	HPJA100	100	56	122	13.5	54	30	57.2	1	3.35
7	7	HPJA125	125	71	148	18.2	68	45	82.6	1.5	6.27
8	8	HPJA150	150	73	173	18.2	70	55	88.9	1.5	9.07
9	9	HPJA200	200	79	223	18.2	76	70	108	1.5	17.33
10	10	HPJA250	250	79	273	18.2	76	70	108	1.5	28.07
