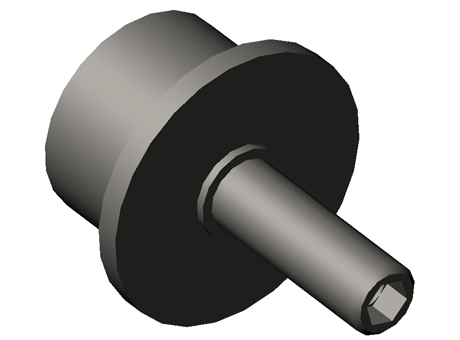

Flange Rollers with Concentric bolt

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Flange Rollers with Concentric Journals
Reference	HPJ26

CAD models

Product selection

Index	Selector	Order No.	A (mm)	B (mm)	C (mm)	D (mm)	K (mm)	L (mm)	M (mm)	N	R (mm)	S (mm)	X (mm)	Housing Hole (mm)	Weight (kg)
1	1	HPJ26	26	20	35	5	10	23	13	M10x1,0	13.1	0.8	4	10.02	0.11
2	2	HPJ30	30	20	40	5	12	25	14	M12x1,5	15.9	0.8	4	12.02	0.14
3	3	HPJ32	32	22	42	5	12	25	14	M12x1,5	15.9	0.8	4	12.02	0.17
4	4	HPJ35	35	22	46	5	16	32.5	18	M16x1,5	19.1	0.8	8	16.02	0.2
5	5	HPJ40	40	30	54	8.8	14	40	26	M14x2,0	18	1.6	8	14.02	0.33
6	6	HPJ40-1	40	27.6	54	7.8	18	36.5	19	M18x1,5	22	1.6	8	18.02	0.24
7	7	HPJ47	47	27.6	61	7.8	20	40.5	21	M20x1,5	25.5	1.6	8	20.02	0.47
8	8	HPJ50	50	40	68	14	16	50	35	M16x2,0	23	1.6	8	16.02	0.7
9	9	HPJ52	52	33.6	66	10.8	20	40.5	21	M20x1,5	25.5	1.6	8	20.02	0.83
10	10	HPJ62	62	44	78	14	24	58	35	M24x3,0	32	1.6	8	24.02	1.21
11	11	HPJ62-2	62	44	78	14	24	49.5	25	M24x1,5	32	1.6	8	24.02	1.21
12	12	HPJ72	72	44	90	14	24	49.5	25	M24x1,5	32	1.6	8	24.02	1.28
13	13	HPJ76	76	52	98	14	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	2.17
14	14	HPJ80	80	52	102	14	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	2.41
15	15	HPJ85	85	52	107	14	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	2.75
16	16	HPJ90	90	52	112	14	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	2.98
17	17	HPJ100	100	52	125	14	30	80	50	M30x3,5	44.5	1.6	12	30.02	3.7
18	18	HPJ100-1	100	52	125	14	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	3.52
19	19	HPJ125	125	76	148	18	48	105	60	M48x5,0	82.5	1.6	12	48.02	8.86
20	20	HPJ150	150	76	173	18.3	64	140	82	M64x6,0	82.5	1.6	12	64.02	13.07
21	21	HPJ200	200	76	223	18.3	64	140	82	M64x6,0	82.5	1.6	12	64.02	20.37
