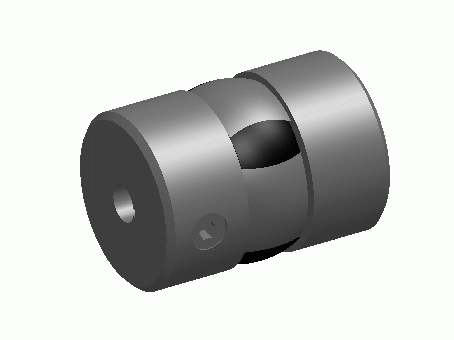

Elastic spider coupling, type M, GD Zn A14, spider Perbunan

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Elastic spider coupling, type M, GD Zn A14, spider Perbunan
Reference	M 1-6-6

CAD models

Request for quotation

Product selection

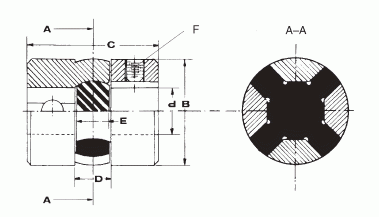

Index	Selector	Order no.	dH7 min (mm)	dH7 max (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F
1	1	M 1	6	16	27.5	38	11	9.5	M6
2	2	M 2	9.8	24	42	52	14	12.7	M8
3	3	M 3	13.8	35	58.5	71	22	19	M10
4	4	M 4	18.8	42	75	89	26	22.5	M10

d1 (mm)

d2 (mm)
