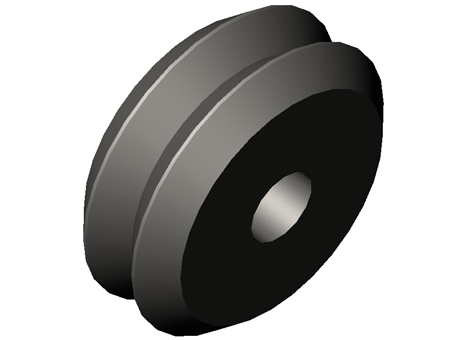

DUALVee ® Guide Rollers

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	DUALVee ® Guide Rollers
Reference	W1
Material	AISI 52100
Note	Blech

CAD models

Request for quotation

Product selection

Index	Selector	Order No.	Type of Seal	Material	A (mm)	B (mm)	C (mm)	MDW inside (mm)	MDW outside (mm)	Weight (g)
1	1	W1	Blech	AISI 52100	19.55	7.87	4.76	7.92	11.86	12
2	2	W2	Blech	AISI 52100	30.73	11.09	9.52	12.7	18.23	40
3	3	W3	Blech	AISI 52100	45.72	15.87	12	19.05	26.97	136
4	4	W4	Blech	AISI 52100	59.94	19.05	15.01	25.4	34.92	285
5	5	W1X	Neopren	AISI 52100	19.55	7.87	4.76	7.92	11.86	12
6	6	W2X	Neopren	AISI 52100	30.73	11.09	9.52	12.7	18.23	40
7	7	W3X	Neopren	AISI 52100	45.72	15.87	12	19.05	26.97	136
8	8	W4X	Neopren	AISI 52100	59.94	19.05	15.01	25.4	34.92	285
9	9	W1XSS	Neopren	1.4305	19.55	7.87	4.76	7.92	11.86	12
10	10	W2XSS	Neopren	1.4305	30.73	11.09	9.52	12.7	18.23	40
11	11	W3XSS	Neopren	1.4305	45.72	15.87	12	19.05	26.97	136
12	12	W4XSS	Neopren	1.4305	59.94	19.05	15.01	25.4	34.92	285
