Curve Systems, Support Plate MR210 MR416

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia

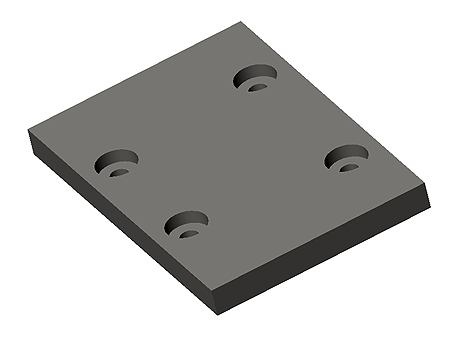

Description	Curve Systems, Support Plate MR210 MR416
Reference	MR210

CAD models

Product selection

Index	Selector	Order no.	Roller concentric	Roller eccentric	L (mm)	B (mm)	H (mm)	Bore Hole H10 (mm)

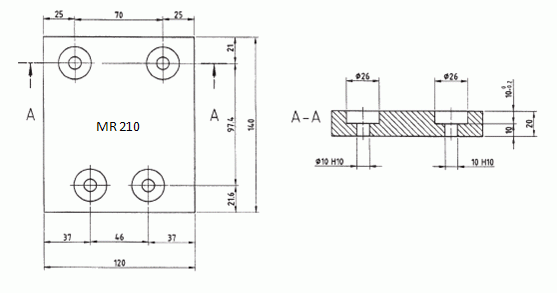

1	1	MR210	C210	E210	120	140	20	10

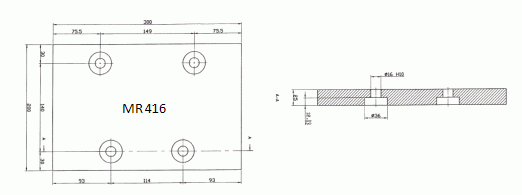

2	2	MR416	C416	E416	300	200	25	16
