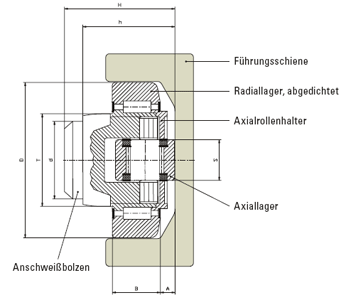

Combined Bearings, Axial bearing adjustable with eccentric cam

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Combined Rollers with Eccentric Cam
Reference	HEC EX108

CAD models

Request for quotation

Product selection

Index	Selector	Order No.	D (mm)	T (mm)	d (mm)	H (mm)	h (mm)	B (mm)	A (mm)	S (mm)	r (mm)	C (kN)	Co (kN)	Ca (kN)	Coa (kN)	Weight (kg)
1	1	HEC EX108	62	42	30	37.5	30,5 - 32,0	20	4	20	3	39	65	16	25	0.53
2	2	HEC EX110	70.1	48	35	44	36,0 - 37,5	23	4	20	4	56	93	16	25	0.8
3	3	HEC EX112	77.7	54	40	48	37,5 - 38,5	23	3.5	26	4	59	102	23	36	1
4	4	HEC EX114	77.7	54	40	40	29,0 - 30,5	23	3.5	26	4	59	102	23	36	0.87
5	5	HEC EX116	88.4	59	45	57	44,0 - 45,5	30	4	26	4	85	134	23	36	1.62
6	6	HEC EX118	101.2	69	50	46	33,0 - 35,0	26	4.5	30	3	91	140	32	50	1.74
7	7	HEC EX120	107.7	69	55	54	40,0 - 42,0	31	4	30	5	100	174	32	50	2.27
8	8	HEC EX122	107.7	69	60	69	55,0 - 57,0	31	4	30	5	100	174	32	50	2.82
9	9	HEC EX124	123	80	60	72.3	56,0 - 60,0	37	4.5	34	5	135	242	41	72	3.9
10	10	HEC EX126	149	108	60	78.5	58,5 - 62,5	45	6	34	3	183	353	41	72	6.5
