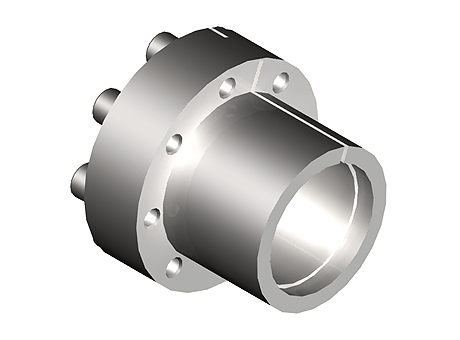

CLAMPEX® shaft to hub connector, self centering, type 250 for flange connection

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	CLAMPEX®-shaft-hub-connection, self centering, type 250 for flange connection
Reference	250-6X14

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	d x D (mm)	D1 (mm)	B	B1 (mm)	B2 (mm)	B3 (mm)	Din 912-12.9	z	Ta [Nm] 201	T (N.m)	Fax (kN)	PW (N/mm2)	PN (N/mm2)	Weight
1	1	250-6X14	6x14	25	24.5	21.5	18.5	9	M3	4	2	14	5	252	108	0.1
2	2	250-8X15	8x15	27	29	25	22	12	M4	3	5	27	7	210	112	0.12
3	3	250-9X16	9x16	28	31	26	23	14	M4	4	5	40	9	207	116	0.15
4	4	250-10X16	10x16	29	30	26	22.5	14	M4	4	5	46	9	192	120	0.15
5	5	250-11X18	11x18	32	31	26	23	14	M4	4	5	49	9	169	103	0.18
6	6	250-12X18	12x18	32	30	26	22.5	14	M4	4	5	55	9	160	106	0.18
7	7	250-14X23	14x23	38	30	26	22.5	14	M4	4	5	64	9	137	83	0.2
8	8	250-15X24	15x24	44	42	36	28.5	16	M6	4	15	139	19	227	142	0.31
9	9	250-16X24	16x24	44	42	36	28.5	16	M6	4	15	148	19	213	142	0.3
10	10	250-18X26	18x26	47	44	38	31	18	M6	4	17	199	22	191	132	0.32
11	11	250-19X27	19x27	48	44	38	31	18	M6	4	17	210	22	181	127	0.35
12	12	250-20X28	20x28	49	44	38	31	18	M6	4	17	222	22	172	123	0.36
13	13	250-22X32	22x32	54	51	45	38	25	M6	4	17	244	22	112	77	0.45
14	14	250-24X34	24x34	56	51	45	38	25	M6	4	17	266	22	103	73	0.48
15	15	250-25X34	25x34	56	51	45	38	25	M6	4	17	277	22	99	73	0.5
16	16	250-28X39	28x39	61	51	45	38	25	M6	6	17	465	33	133	95	0.52
17	17	250-30X41	30x41	62	51	45	38	25	M6	6	17	499	33	124	91	0.53
18	18	250-32X43	32x43	65	51	45	38	25	M6	6	17	517	32	113	84	0.58
19	19	250-35X47	35x47	69	56	50	43	30	M6	8	17	776	44	118	88	0.69
20	20	250-38X50	38x50	72	56	50	43	30	M6	8	17	842	44	109	82	0.73
21	21	250-40X53	40x53	75	56	50	43	30	M6	8	17	886	44	103	78	0.8
22	22	250-42X55	42x55	78	58	52	45	32	M6	8	17	904	43	89	68	0.83
23	23	250-45X59	45x59	85	73	65	57	40	M8	8	41	1842	82	127	97	1.4
24	24	250-48X62	48x62	87	78	70	62	45	M8	8	41	1909	80	103	80	1.42
25	25	250-50X65	50x65	92	78	70	62	45	M8	10	41	2559	102	127	98	1.6
26	26	250-55X71	55x71	98	83	75	67	50	M8	10	41	2815	102	104	81	1.9
27	27	250-60X77	60x77	104	83	75	67	50	M8	10	41	3070	102	95	74	2.05
28	28	250-65X84	65x84	111	83	75	67	50	M8	10	41	3326	102	88	68	2.15
29	29	250-70X90	70x90	119	101	91	80	60	M10	10	83	5688	163	108	84	3.35
30	30	250-75X95	75x95	126	101	91	80	60	M10	10	83	6094	163	101	80	3.6
31	31	250-80X100	80x100	131	106	96	85	65	M10	12	83	7801	195	105	84	3.75
32	32	250-85X106	85x106	137	106	96	85	65	M10	12	83	8288	195	99	79	4.05
33	33	250-90X112	90x112	143	106	96	85	65	M10	15	83	10970	244	116	93	4.32
34	34	250-95X120	95x120	153	106	96	85	65	M10	15	83	11579	244	110	87	4.5
35	35	250-100X125	100x125	154	106	96	86	65	M12	12	145	14197	284	122	98	4.8
36	36	250-110X140	110x140	180	140	128	114	90	M12	12	145	15147	276	78	61	6.15
37	37	250-120X155	120x155	198	140	128	115	90	M12	12	145	16554	276	71	55	10.14
38	38	250-130X165	130x165	208	140	128	115	90	M12	16	145	23911	368	88	69	11.89
