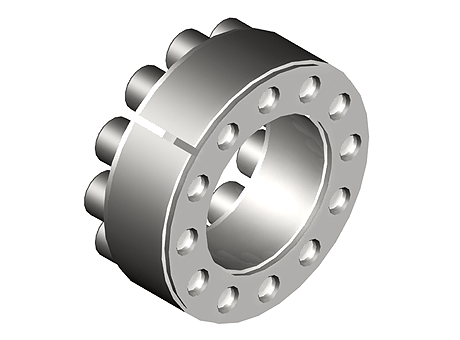

CLAMPEX® shaft to hub connector, non self centering, type 100

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	CLAMPEX®-shaft-hub-connection, non self centering, type 100
Reference	100-18X47

CAD models

Request for quotation

Product selection

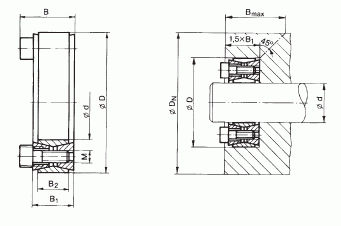

Index	Selector	Order no.	d x D (mm)	B (mm)	B1 (mm)	B2 (mm)	DIN 912-12.9	z	Ta (N.m)	T (N.m)	Fax (kN)	PW (N/mm2)	PN (N/mm2)	Weight
1	1	100-18X47	18 x 47	26	20	17	M6	8	15	240	27	289	111	0.24
2	2	100-19X47	19 x 47	26	20	17	M6	8	15	254	27	274	111	0.24
3	3	100-20X47	20 x 47	26	20	17	M6	8	15	267	27	260	111	0.23
4	4	100-22X47	22 x 47	26	20	17	M6	8	15	294	27	237	111	0.23
5	5	100-24X50	24 x 50	26	20	17	M6	8	15	320	27	217	104	0.26
6	6	100-25X50	25 x 50	26	20	17	M6	8	15	334	27	208	104	0.25
7	7	100-28X55	28 x 55	26	20	17	M6	12	15	560	40	279	142	0.3
8	8	100-30X55	30 x 55	26	20	17	M6	12	15	600	40	260	142	0.29
9	9	100-32X60	32 x 60	26	20	17	M6	12	15	641	40	244	130	0.34
10	10	100-35X60	35 x 60	26	20	17	M6	12	15	701	40	223	130	0.32
11	11	100-38X65	38 x 65	26	20	17	M6	15	15	951	50	257	150	0.36
12	12	100-40X65	40 x 65	26	20	17	M6	15	15	1001	50	244	150	0.34
13	13	100-42X75	42 x 75	32	24	17	M8	12	37	1506	72	283	159	0.6
14	14	100-45X75	45 x 75	32	24	20	M8	12	37	1614	72	264	159	0.57
15	15	100-48X80	48 x 80	32	24	20	M8	12	37	1721	72	248	149	0.6
16	16	100-50X80	50 x 80	32	24	20	M8	12	37	1793	72	238	149	0.6
17	17	100-55X85	55 x 85	32	24	20	M8	15	37	2465	90	270	175	0.63
18	18	100-60X90	60 x 90	32	24	20	M8	15	37	2690	90	248	165	0.69
19	19	100-65X95	65 x 95	32	24	20	M8	15	37	2914	90	229	156	0.73
20	20	100-70X110	70 x 110	38	28	24	M10	15	70	4992	143	282	179	1.26
21	21	100-75X115	75 x 115	38	28	24	M10	15	70	5349	143	263	171	1.33
22	22	100-80X120	80 x 120	38	28	24	M10	15	70	5705	143	246	164	1.4
23	23	100-85X125	85 x 125	38	28	24	M10	15	70	6092	143	232	158	1.49
24	24	100-90X130	90 x 130	38	28	24	M10	15	70	6418	143	219	152	1.53
25	25	100-95X135	95 x 135	38	28	24	M10	18	70	8130	171	249	175	1.62
26	26	100-100X145	100 x 145	42	30	26	M12	15	127	10881	218	278	191	2.01
27	27	100-110X155	110 x 155	42	30	26	M12	15	127	11969	218	252	179	2.15
28	28	100-120X165	120 x 165	42	30	26	M12	16	127	13927	232	247	179	2.35
29	29	100-130X180	130 x 180	50	38	34	M12	20	127	18860	290	218	157	3.51
30	30	100-140X190	140 x 190	50	38	34	M12	22	127	22341	319	222	164	3.85
31	31	100-150X200	150 x 200	50	38	34	M12	24	127	26113	348	226	170	4.07
32	32	100-160X210	160 x 210	50	38	34	M12	26	127	30175	377	230	175	4.3
33	33	100-170X225	170 x 225	58	44	38	M14	22	195	35710	420	216	163	5.78
34	34	100-180X235	180 x 235	58	44	38	M14	24	195	41248	458	222	170	6.05
35	35	100-190X250	190 x 250	66	52	46	M14	28	195	50796	535	203	154	8.25
36	36	100-200X260	200 x 260	66	52	46	M14	30	195	57289	573	206	159	8.65
37	37	100-220X285	220 x 285	72	56	50	M16	26	300	74838	680	205	158	11.22
38	38	100-240X305	240 x 305	72	56	50	M16	30	300	94202	785	217	171	12.2
39	39	100-260X325	260 x 325	72	56	50	M16	34	300	115659	890	227	182	13.2
40	40	100-280X355	280 x 355	87	66	60	M18	32	410	139261	995	196	155	19.2
41	41	100-300X375	300 x 375	87	66	60	M18	36	410	167860	1119	206	165	20.5
42	42	100-320X405	320 x 405	101	78	72	M20	36	590	240190	1501	216	171	29.6
43	43	100-340X425	340 x 425	101	78	72	M20	36	590	255201	1501	203	163	31.1
44	44	100-360X455	360 x 455	116	90	84	M22	36	790	328186	1823	200	158	42.2
45	45	100-380X475	380 x 475	116	90	84	M22	36	790	346419	1823	189	152	44
46	46	100-400X495	400 x 495	116	90	84	M22	36	790	364651	1823	180	145	46
47	47	100-420X515	420 x 515	116	90	84	M22	40	790	371953	1771	196	160	50
48	48	100-440X545	440 x 545	130	102	96	M24	40	1000	453797	2063	188	152	64.6
49	49	100-460X565	460 x 565	130	102	96	M24	40	1000	467548	2033	180	146	67.4
50	50	100-480X585	480 x 585	130	102	96	M24	42	1000	512270	2134	181	148	71
51	51	100-500X605	500 x 605	130	102	96	M24	44	1000	559025	2236	182	150	72.6
52	52	100-520X630	520 x 630	130	102	96	M24	45	1000	603344	2321	179	148	80
53	53	100-540X650	540 x 650	130	102	96	M24	45	1000	626549	2321	172	143	82
54	54	100-560X670	560 x 670	130	102	96	M24	48	1000	683027	2439	177	148	85
55	55	100-580X690	580 x 690	130	102	96	M24	50	1000	736897	2541	178	150	88
56	56	100-600X710	600 x 710	130	102	96	M24	50	1000	773517	2578	172	145	91
